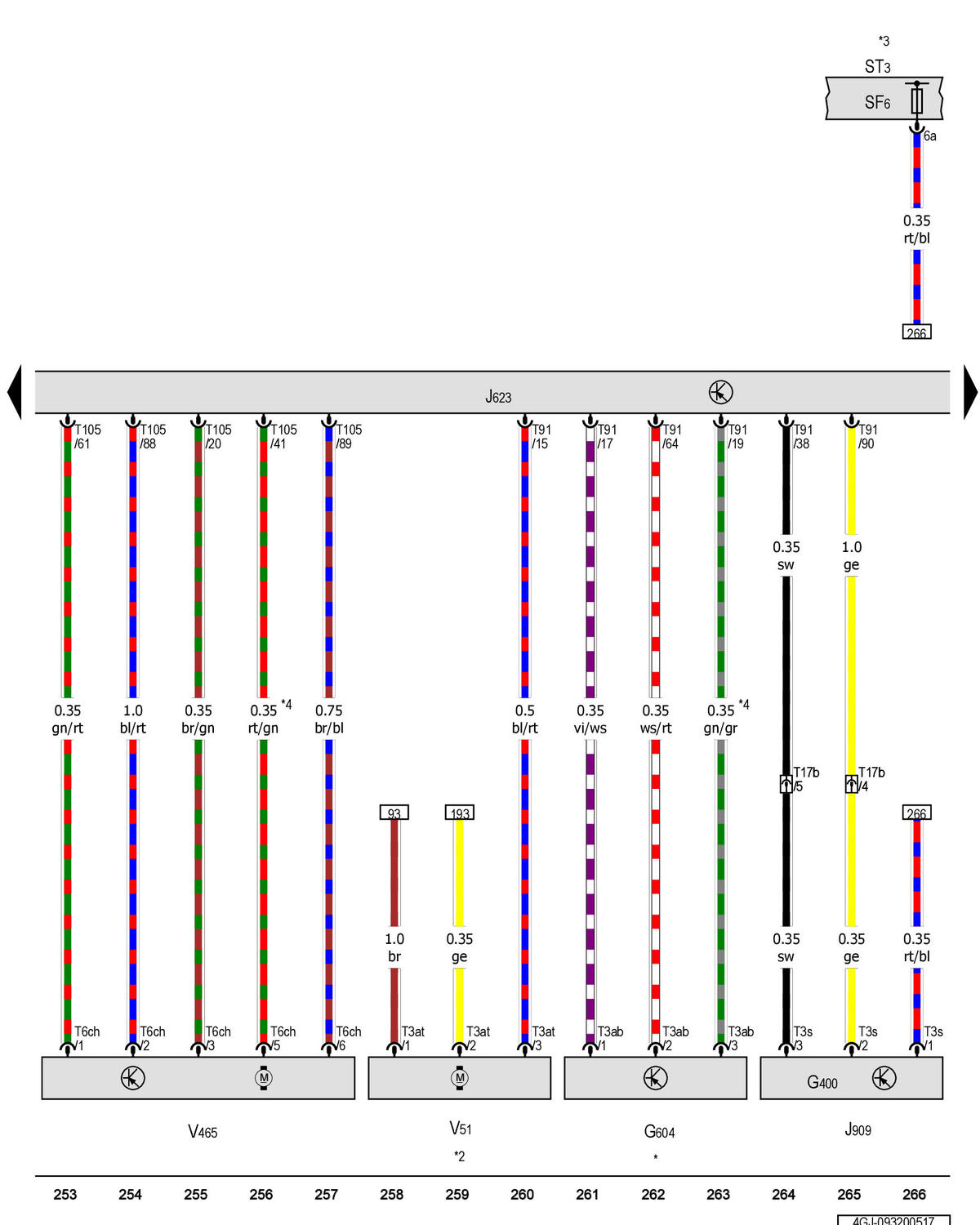

Gear Recognition Sensor, Engine Control Module, Fuel Tank Leak Detection Control Module: Notes

GWW4GJ-093200517Courtesy of AUDI OF AMERICA, LLC
