Home › Audi › 2018 › Q5 Premium Plus › Repair and Diagnosis (Single Page) › Electrical › Body Electrical › OEM Wiring Diagram [DAYB,DJYA] › Wiring Diagram › Engine/Motor Control Module › Notes

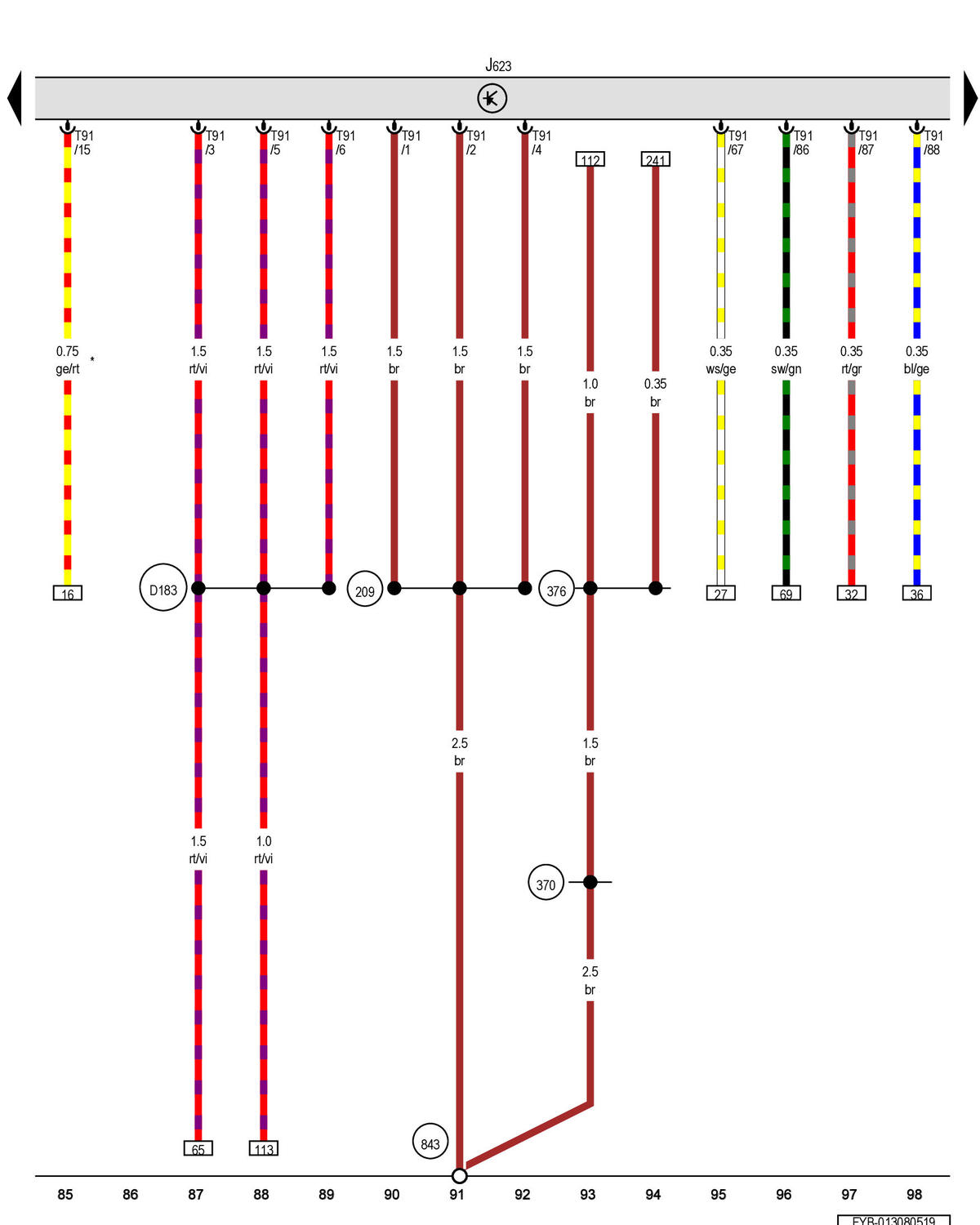

Engine/Motor Control Module: Notes

GWWFYB-013080519

Courtesy of AUDI OF AMERICA, LLC
