Battery Monitoring Control Module J367
›

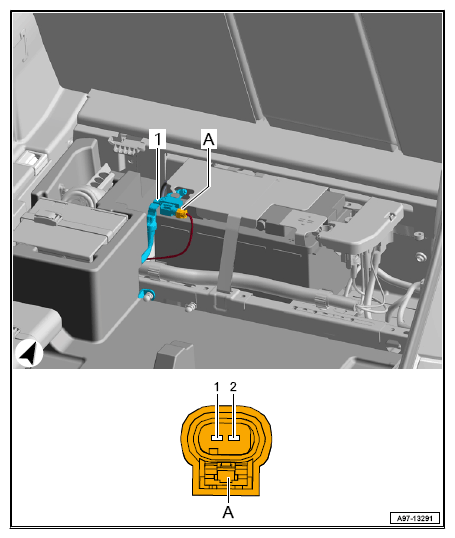

Battery Monitoring Control Module -J367- Connector Views
Battery Monitoring Control Module -J367- Connector Views
Double connector -T2x-
Courtesy of AUDI OF AMERICA, LLC
T2x (A)
Designation
1
LIN-Bus
2
Terminal 30
Courtesy of AUDI OF AMERICA, LLC
