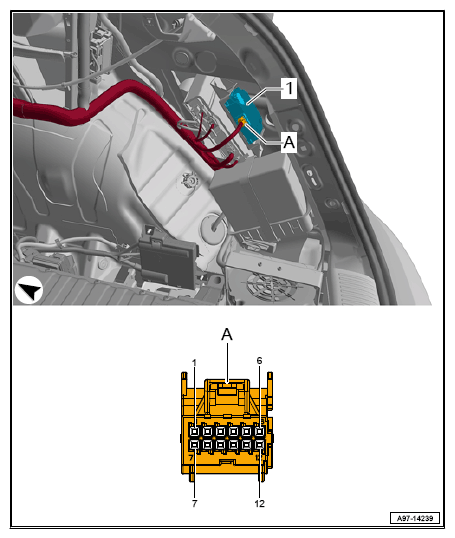

Engine Sound Generator Control Module -J943- Connector View, Vehicle With High-Volt-System

12-PIN CONNECTOR -T12Y-

-T12y- (A)	Bezeichnung
1	Voltage Supply (VS)
2	GND,
3	Voltage Supply (VS)
4	GND
5
6
7	Voltage Supply (VS)
8	GND,
9
10
11	CAN-L
12	CAN-H

Courtesy of AUDI OF AMERICA, LLC
