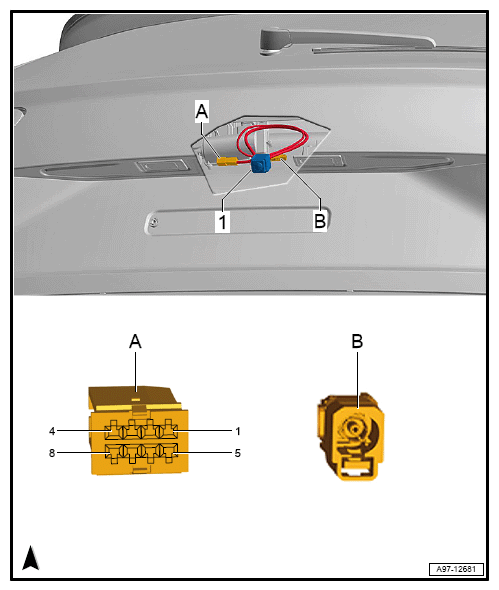

Rear View Camera System Control Module -J772- Connector Views

8-PIN CONNECTOR -T8K-

Courtesy of AUDI OF AMERICA, LLC

T8k (A)	Designation
1	Terminal 30
2
3
4	Extended System CAN-Bus High
5	Terminal 31
6
7
8	Extended System CAN-Bus Low
