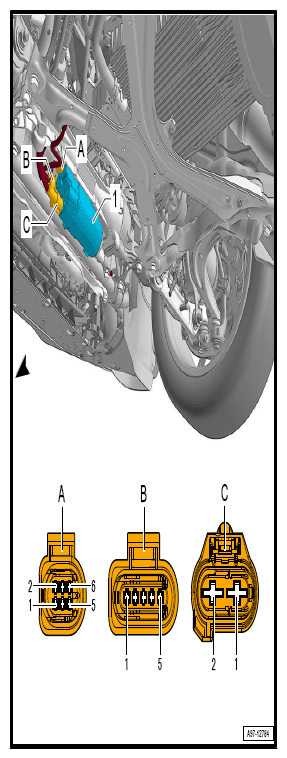

Power Steering Control Module -J500- Connector
6-Pin Connector -T6F- (B)/Double Connector -T2El- (C)
 Courtesy of AUDI OF AMERICA, LLC
|
| T6f (A) |
Designation |
| 1 |
Terminal 15 |
| 2 |
|
| 3 |
Data-Bus Wire (FlexRay-Bus) |
| 4 |
|
| 5 |
Data-Bus Wire (FlexRay-Bus) |
| 6 |
|
| T2el (C) |
Designation |
| 1 |
Terminal 30 |
| 2 |
Terminal 31 |
