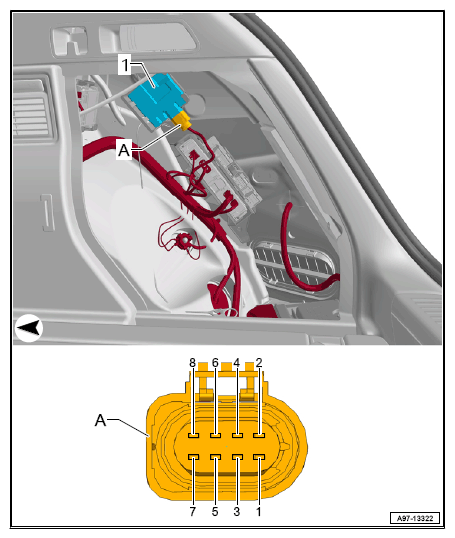

Engine Sound Generator Control Module -J943- Connector Views, Vehicle Without High-Volt-System

8-PIN CONNECTOR -T8BA-

Courtesy of AUDI OF AMERICA, LLC

-T8ba- (A)	Designation
1	CAN-Bus
2	Terminal 31
3	CAN-Bus
4	Terminal 15
5	Engine sound generator actuator 1 R257
6	Engine sound generator actuator 1 R257
7	Engine sound generator actuator 1 R257
8	Engine sound generator actuator 1 R257
