Electrical Components Locations & Connector End Views -- A5 QUATTRO
›
Comp. LOC. Vehicle Rear Modules
›
Battery Monitoring Control Module J367
›
Battery Monitoring Control Module -J367- Connector Views
Battery Monitoring Control Module -J367- Connector Views

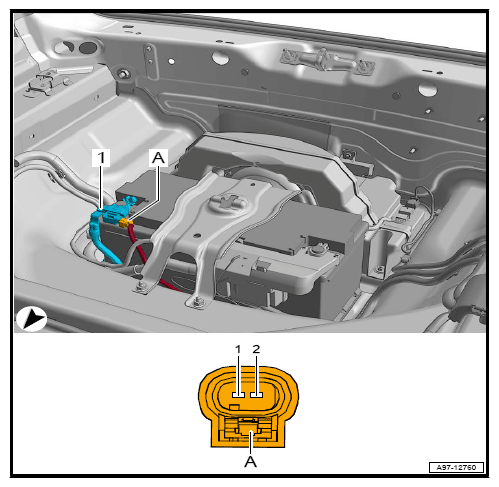

Double Connector -T2X-
Courtesy of AUDI OF AMERICA, LLC
T2x (A)
Designation
1
LIN-Bus
2
Terminal 30
