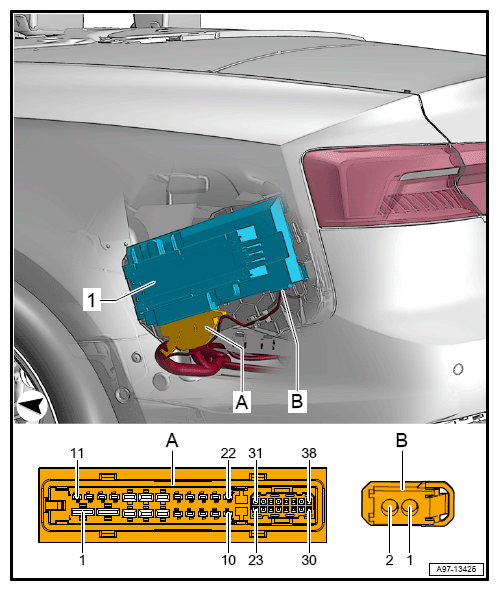

Digital Sound System Control Module -J525-, Location, CABRIO

In Rear Left In Luggage Compartment.

1. Digital Sound System Control Module -J525-

1. 38-Pin Connector -T38-, Black
2. Double Connector -T2VB-, Black
   • MOST Bus

Courtesy of AUDI OF AMERICA, LLC
