Engine Sound Generator Control Module -J943-, Connector Views

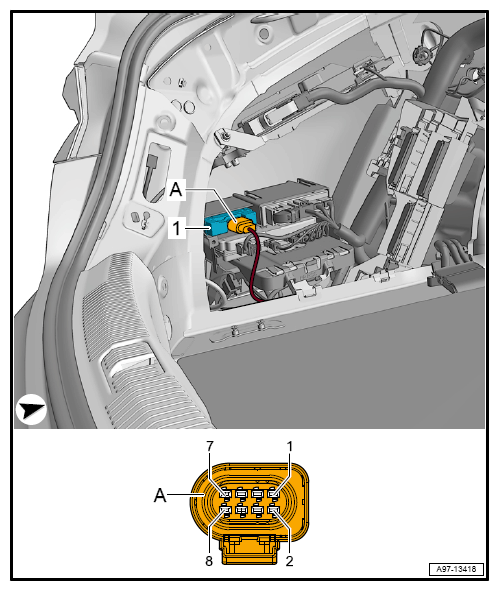

8-Pin Connector -T8BA-

G12767595Courtesy of AUDI OF AMERICA, LLC
T8ba (A) Designation
1 CAN-Bus
2 Terminal 31
3 CAN-Bus
4 Terminal 15
5 Engine sound generator actuator 1 R257
6 Engine sound generator actuator 1 R257
7 Engine sound generator actuator 1 R257
8 Engine sound generator actuator 1 R257
