Wiring Diagram (Engine(S): CEUC, CTGE)
›
Wiring Diagram
›

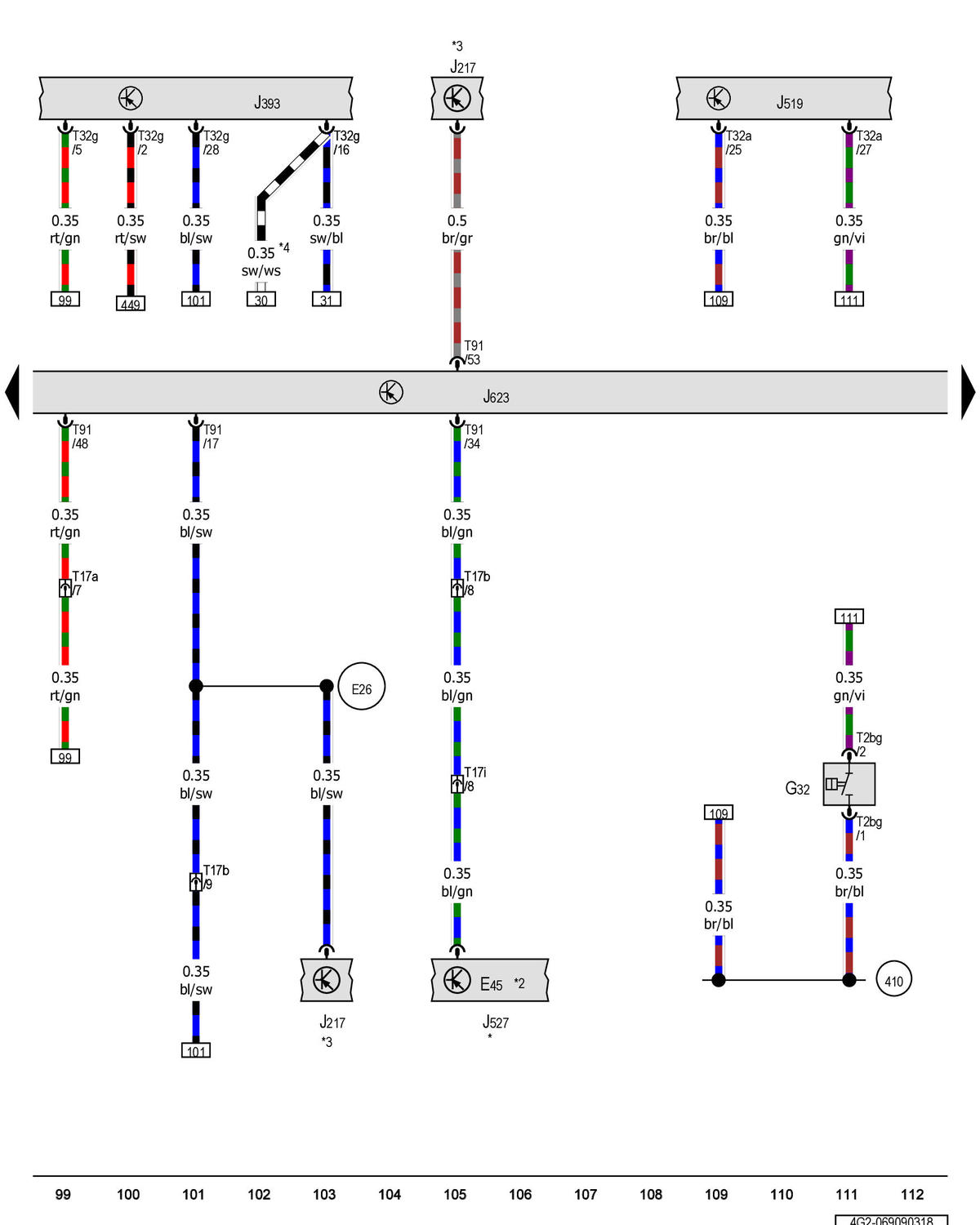

Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module
›
Notes
Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
