Home › Audi › 2018 › S6 Prestige › Repair and Diagnosis (Single Page) › Quick Lookups › Wiring Diagrams › Wiring Diagram (Engine(S): CTGE) › Wiring CALLOUT › Transfer Fuel Pump, Fuel Pump Control Module, Engine/Motor Control Module › Notes

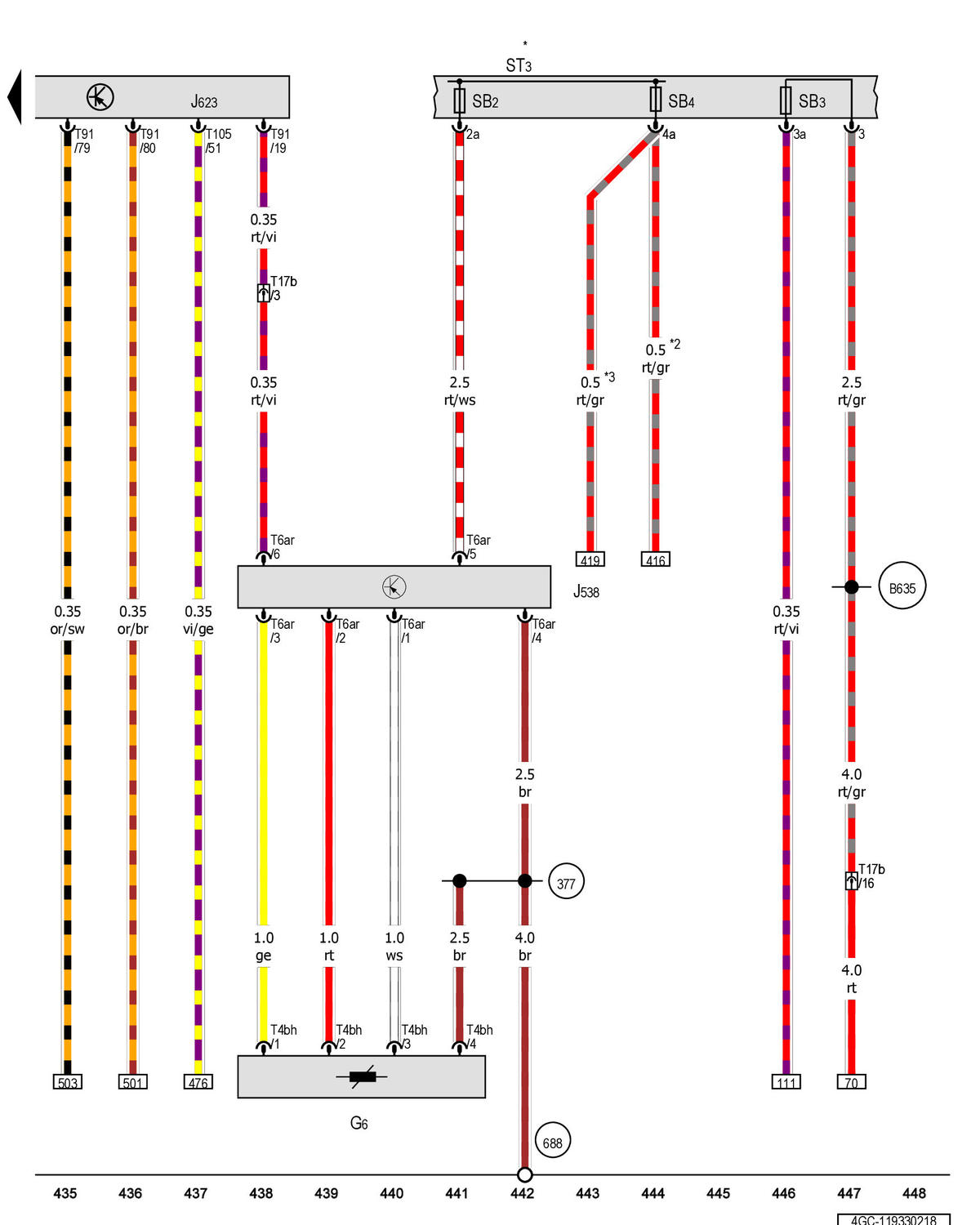

Transfer Fuel Pump, Fuel Pump Control Module, Engine/Motor Control Module: Notes

GWW4GC-119330218Courtesy of AUDI OF AMERICA, LLC
