OEM Wiring Diagram [CHHC,CNTC] (1 Of 2) [Roadster]
›
Wiring Diagrams
›

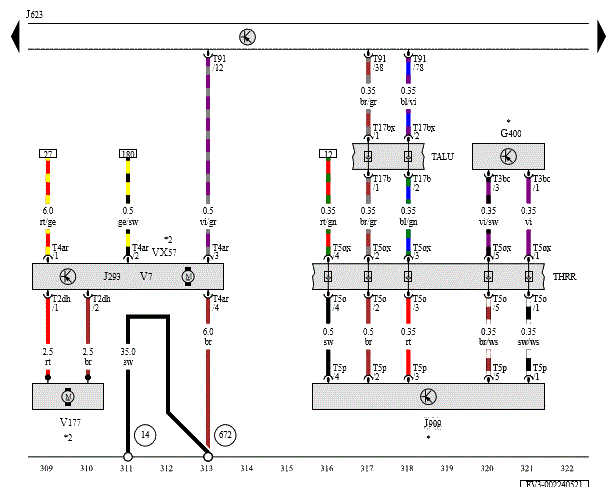

Radiator Fan Control Module, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module
›
Notes
Radiator Fan Control Module, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
