SLP Title
›

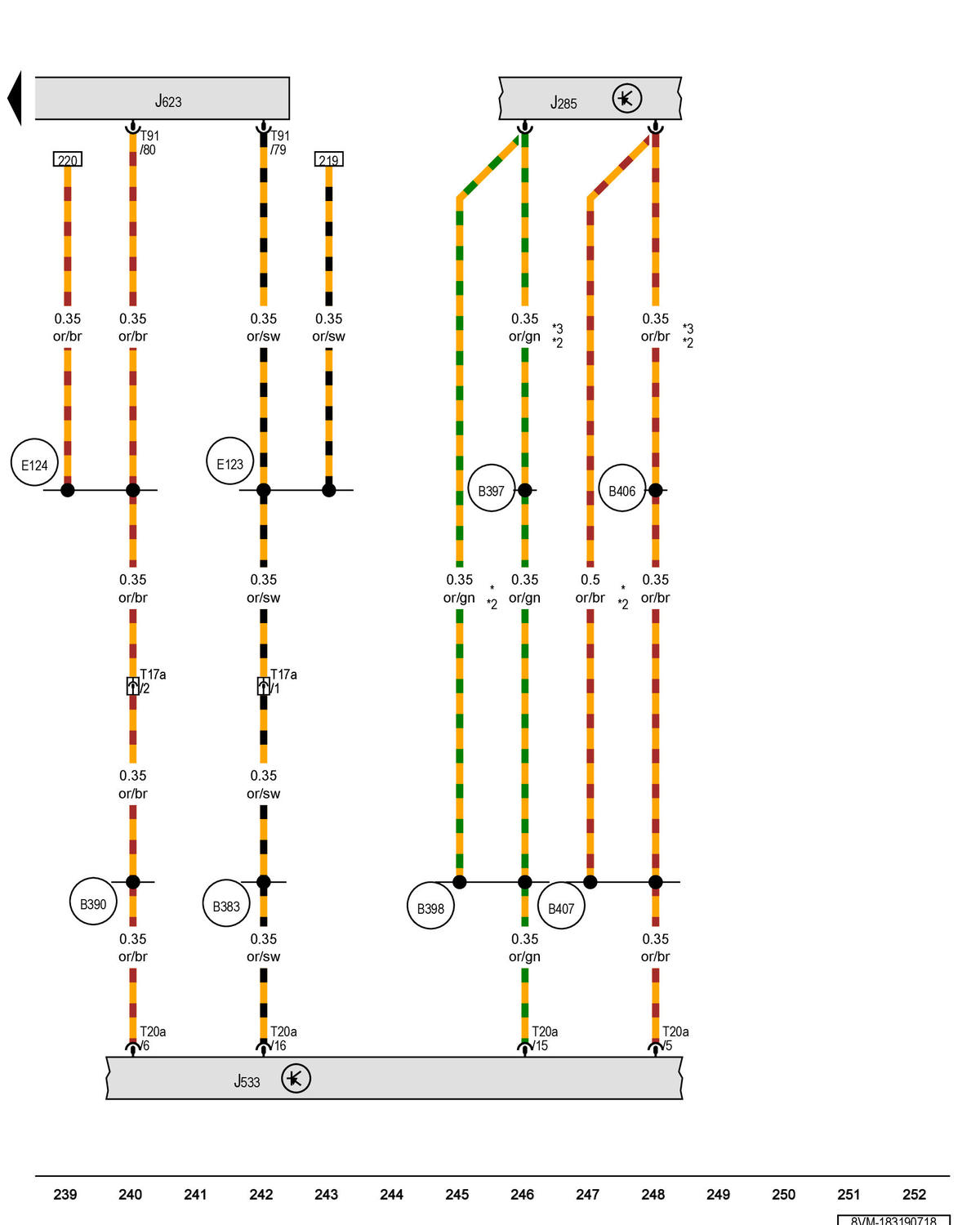

Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module
›
Notes
Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
