Infotainment System Display, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
-- Install in reverse order of removal. Note the following:
-- Protect the new display with film.

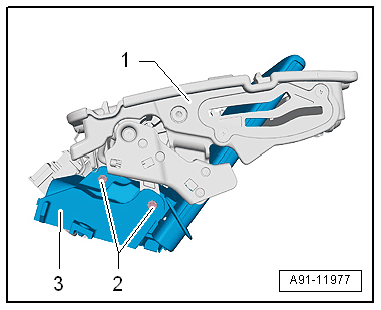

-- Only use new original screws for the screws -2-. Refer to the Parts Information.

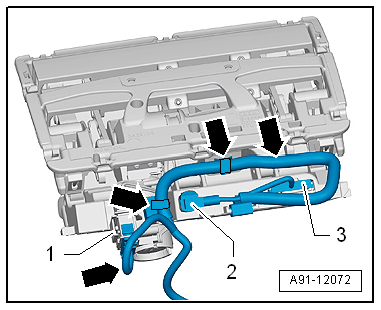

-- Always pay attention to the wiring guide and wire mount on the display kinematics support.
- 8-Pin Connector -T8e-, Drive Display
- 4-Pin Connector -T4ao-, Display
- 8-Pin Connector -T8ai-, Display
-arrows- : wire mounts
NOTE:
For the correct routing of the wiring guide to the display, move the display out of the service position and open completely if necessary.
If the display kinematics support is being replaced:
-- Use a new display cover. Refer to Parts Information.
-- Move the display out of the service position using output diagnostic test mode. Refer to Vehicle Diagnostic Tester.
