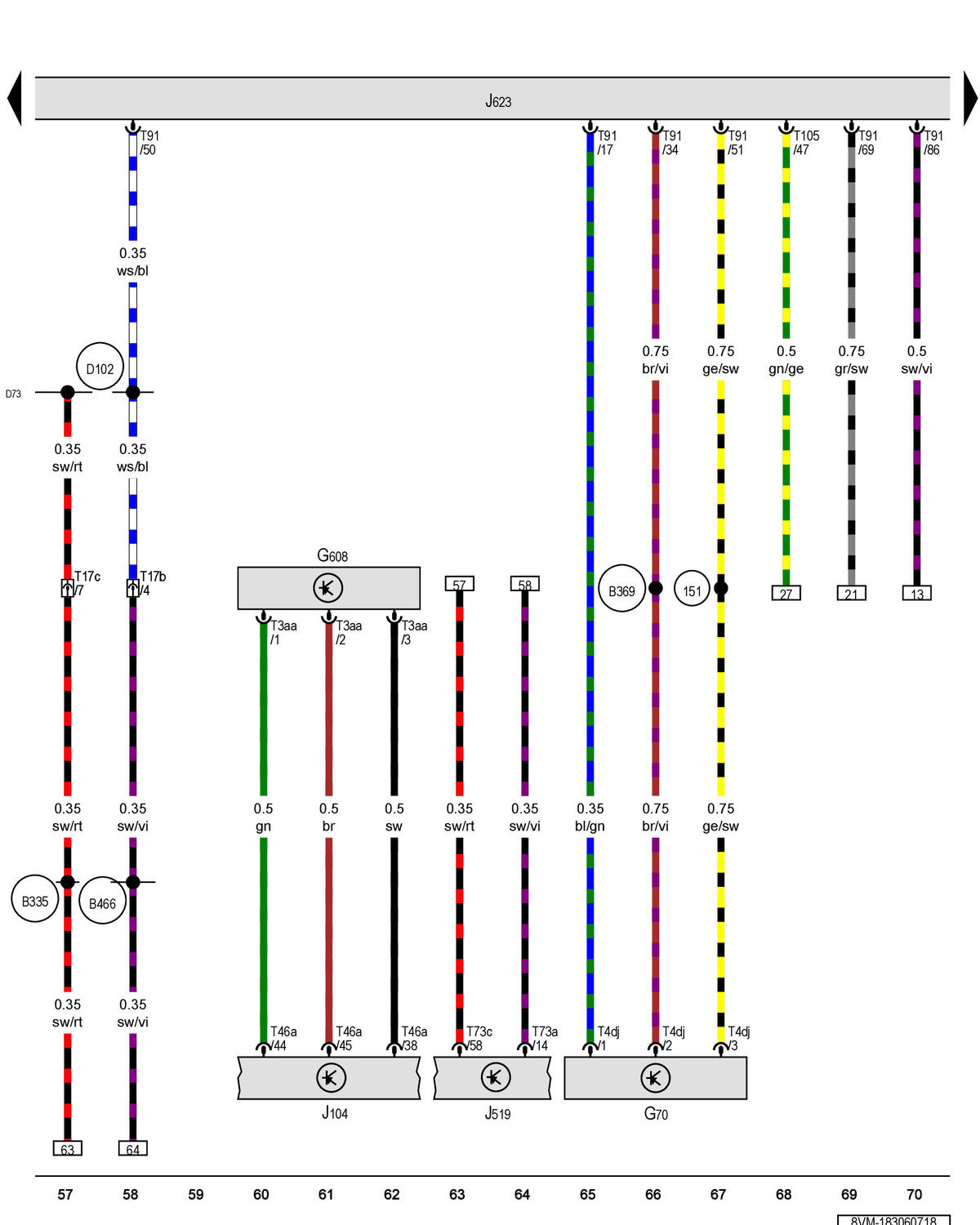

Wiring Diagram [CZRA]
›
SLP Title
›
Vacuum Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module
›
Notes
Vacuum Sensor, Vehicle Electrical System Control Module, Engine/Motor Control Module: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
