AMI - USB Connection Baseplate -R193-, THROUGH MY 2016

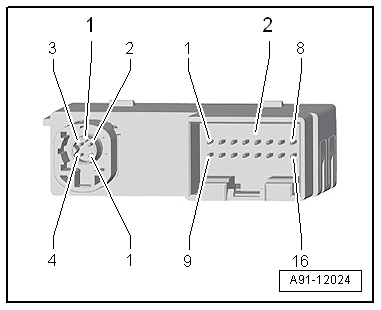

AMI Connector - USB Connection Baseplate R193

Courtesy of AUDI OF AMERICA, LLC

1. 4-Pin Connector -T4u-
2. 16-Pin Connector -T16m-

1 - 4-Pin Connector T4u

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

1. Ground
2. D (-)
3. Detect
4. D (+)

2 - 16-Pin Connector T16m

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

1. LF ground
2. LF right
3. Not Assigned
4. Not Assigned
5. iPod, ACC Power
6. Detect
7. USB, +5 V
8. USB, Ground
9. LF left
10. LF ground Shielding
11. CVBS cable (+)
12. CVBS cable (-)
13. iPod data
14. iPod data
15. Terminal 30
16. Terminal 31
