Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

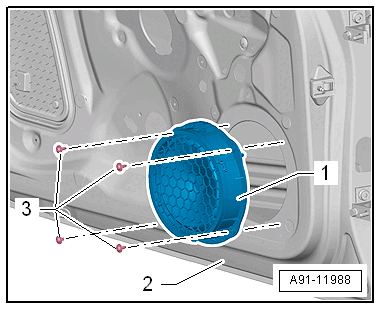

-- Release and disconnect the connector from the Left Front Bass Speaker -R21- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3- from the Left Front Bass Speaker -R21- -1-.

-- Remove the Left Front Bass Speaker -R21- -1- from the door -2-.
