Cellular Telephone Amplifier -R86-

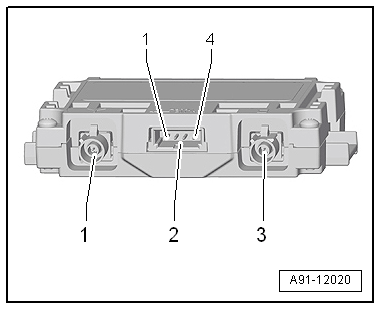

Cellular Telephone Amplifier R86

GWWA91-12020

Courtesy of AUDI OF AMERICA, LLC

GSM connection from Roof Antenna -R216-
4-Pin Connector -T4y-
Antenna connection to the Telephone Baseplate -R126-

NOTE:

Unlisted connector terminals are not assigned.

2 - 4-Pin Connector T4y

GWWA91-12020

Courtesy of AUDI OF AMERICA, LLC

Terminal 30
Terminal 31
Switch-on signal from Information Electronics Control Module 1 -J794-
Control pin, not used
