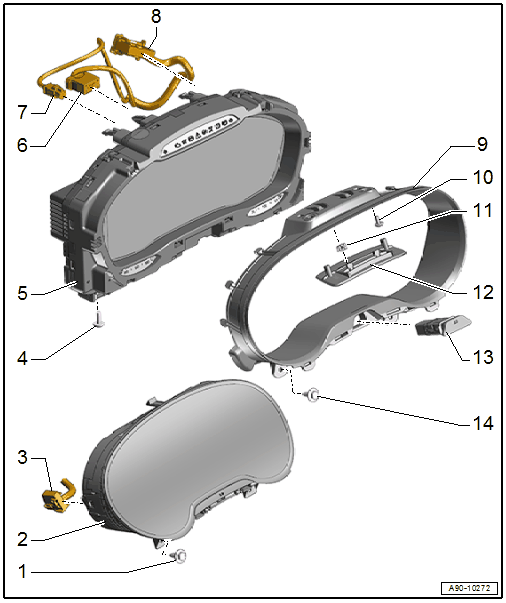

Overview - Instrument Cluster
- Bolt
- 2.5 Nm
- Quantity: 2
- Instrument Cluster - Low
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH INSTRUMENT CLUSTER CONTROL MODULE -J285-, REMOVING AND INSTALLING .
- Connector
- For the instrument cluster
- Bolt
- 2.5 Nm
- Quantity: 2
- Instrument Cluster - High
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH INSTRUMENT CLUSTER CONTROL MODULE -J285-, REMOVING AND INSTALLING, INSTRUMENT CLUSTER HIGH .
- Fiber Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
- Antenna Wire
- Connector
- For the instrument cluster
- Instrument Cluster Trim
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Quantity: 2
- Clip
- Quantity: 2
- Cover
- Instrument Cluster Operation Button -E493-
- Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
- Bolt
- 2.5 Nm
- Quantity: 2
