Wiring Diagram [DBPA]
›
Wiring Diagram(S)
›

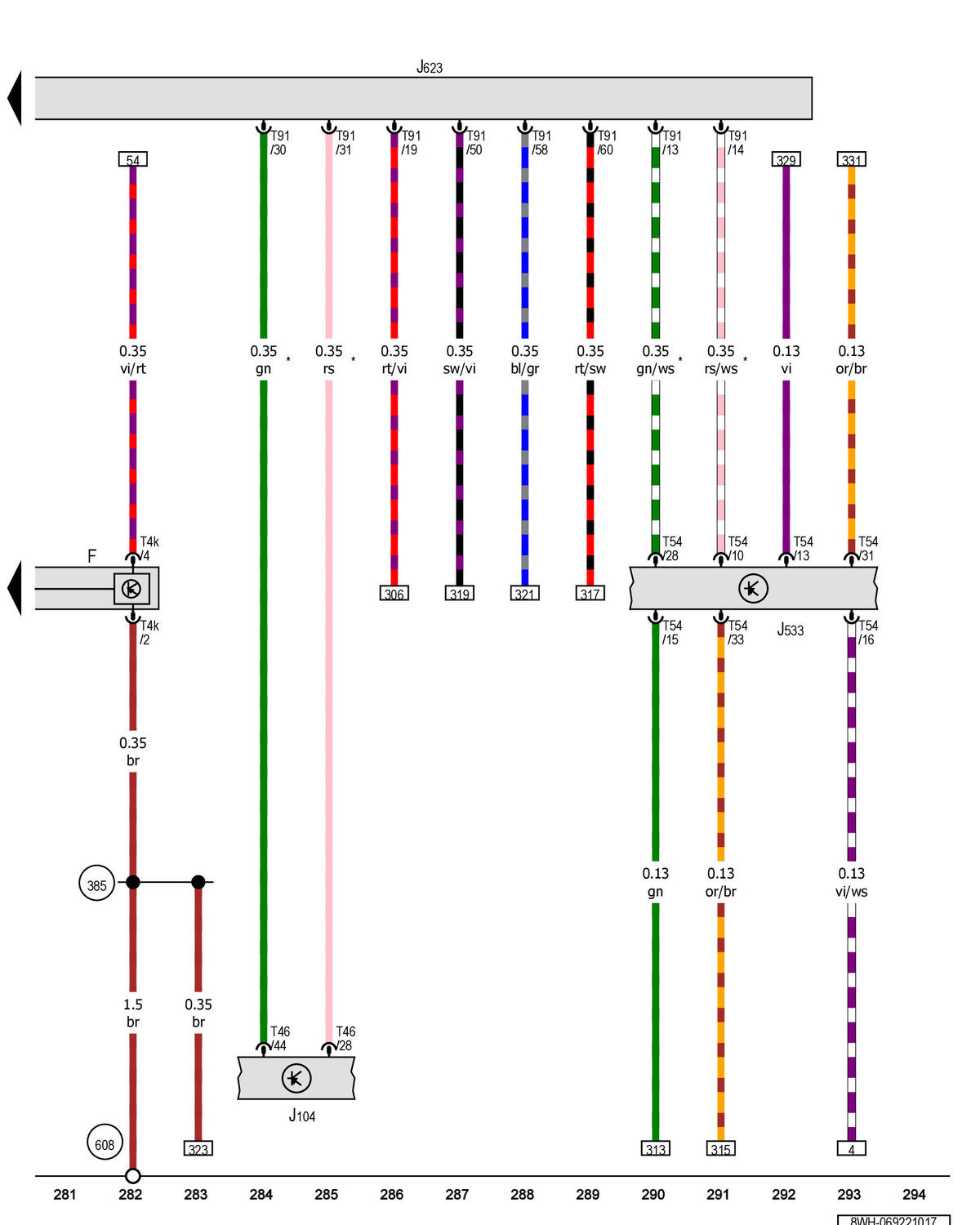

Brake Lamp Switch, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module
›
Notes
Brake Lamp Switch, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module: Notes
