Wiring Diagram [DBPA]
›
Wiring Diagram(S)
›

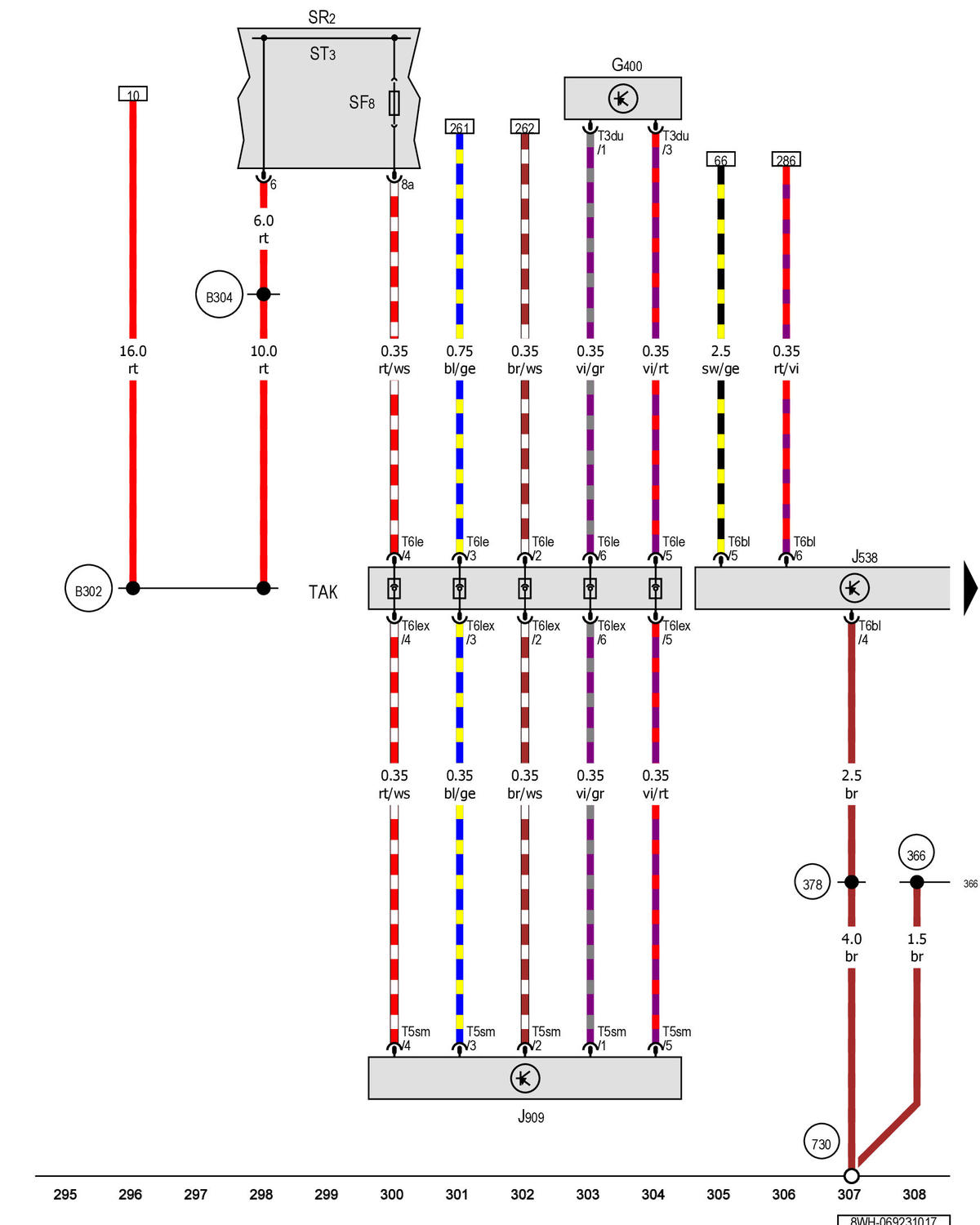

Fuel Tank Pressure Sensor, Fuel Pump Control Module, Fuel Tank Leak Detection Control Module, Relay And Fuse Panel 2
›
Notes
Fuel Tank Pressure Sensor, Fuel Pump Control Module, Fuel Tank Leak Detection Control Module, Relay And Fuse Panel 2: Notes
