Wiring Diagram [DBPA]
›
Wiring Diagram(S)
›

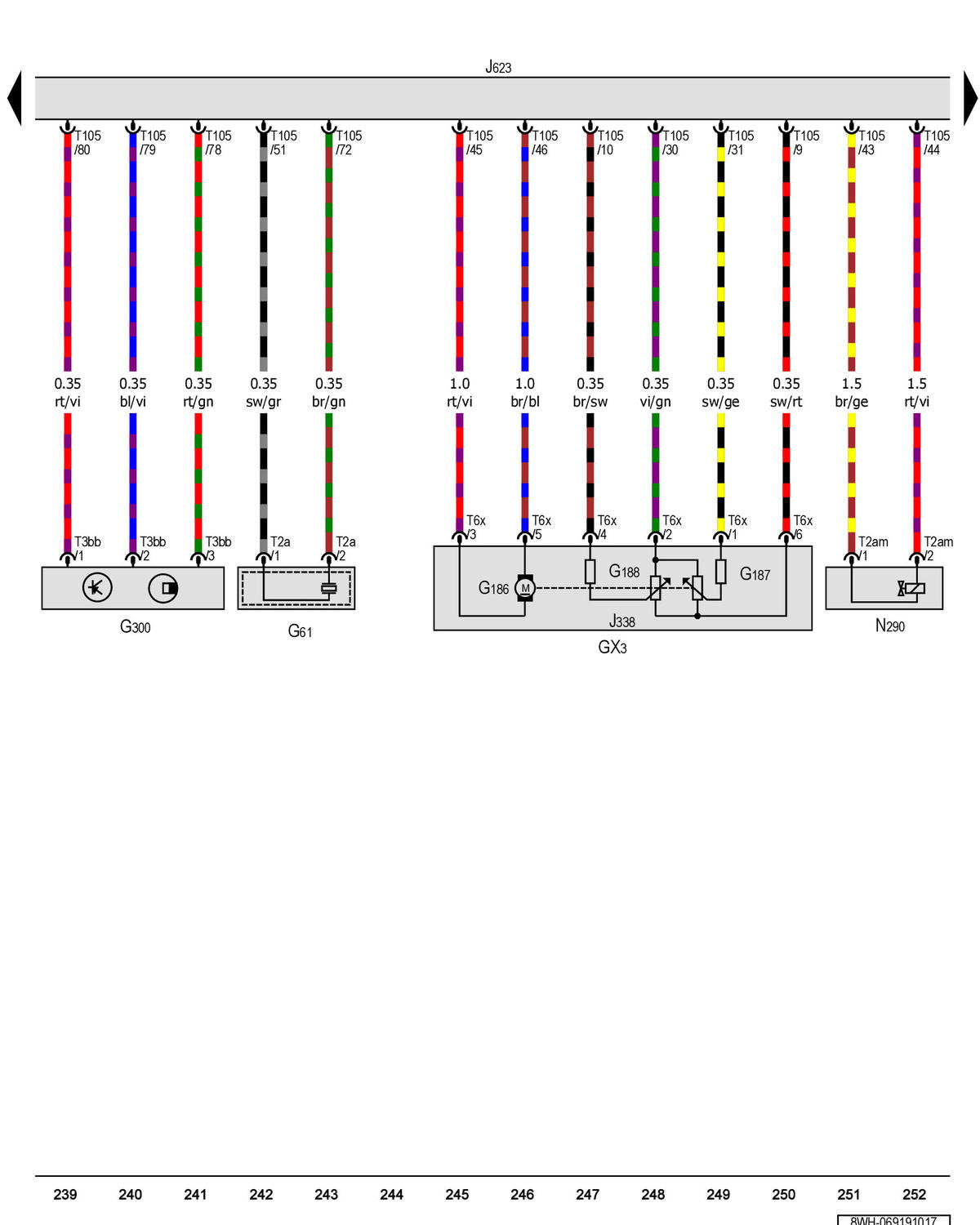

Throttle Valve Control Module, Knock Sensor 1, Camshaft Position Sensor 3, Engine/Motor Control Module, Fuel Metering Valve
›
Notes
Throttle Valve Control Module, Knock Sensor 1, Camshaft Position Sensor 3, Engine/Motor Control Module, Fuel Metering Valve: Notes
