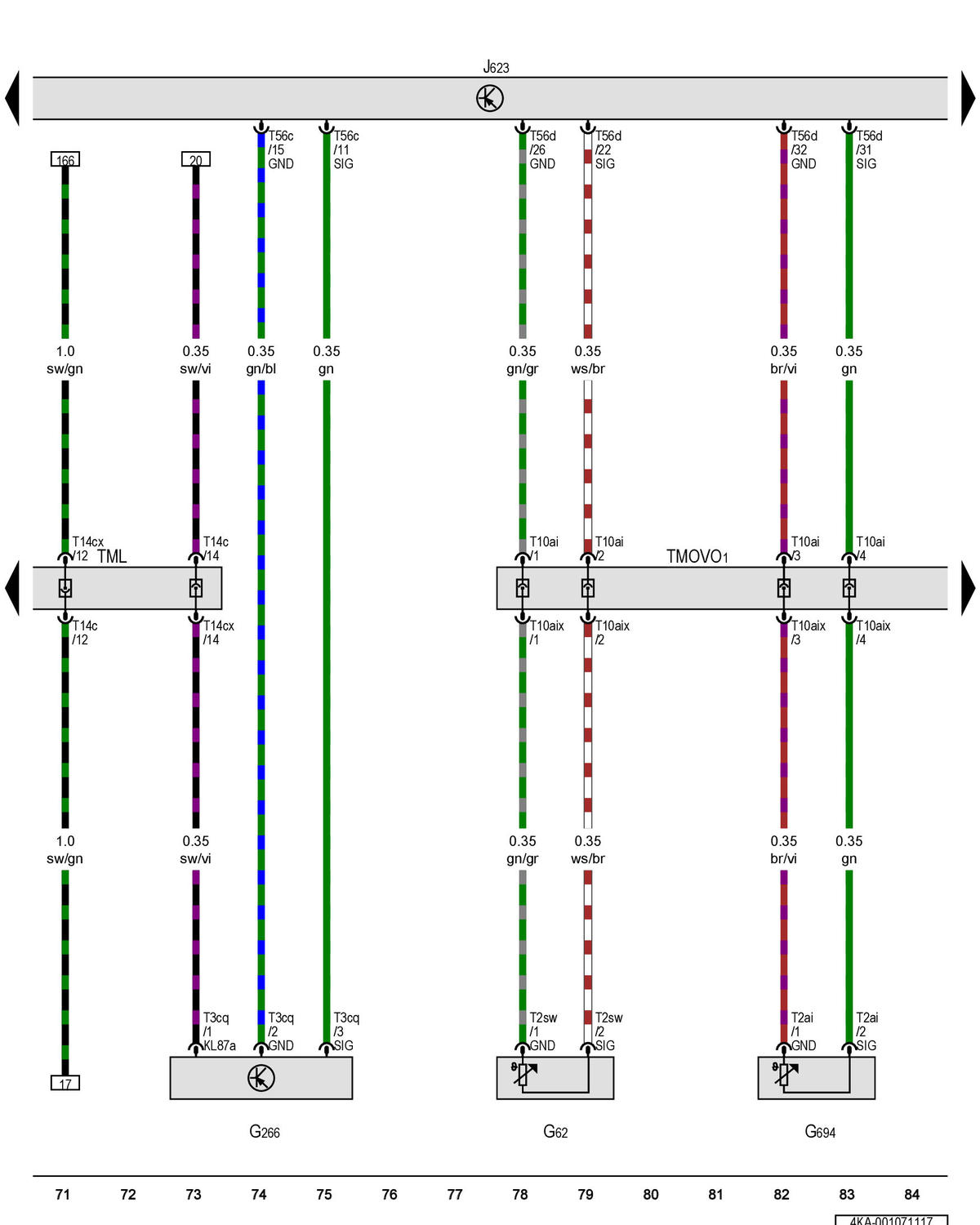

Engine Coolant Temperature Sensor, Oil Level Thermal Sensor, Engine Temperature Control Sensor, Engine/Motor Control Module: Notes

GWW4KA-001071117Courtesy of AUDI OF AMERICA, LLC
