Large Mount for Driver Assistance Systems Control Module - Tightening Specification and Sequence
Large Mount for Driver Assistance Systems Control Module - Tightening Specification and Sequence
Tighten the bolts to 5 Nm in the following sequence: -1 through 5-.

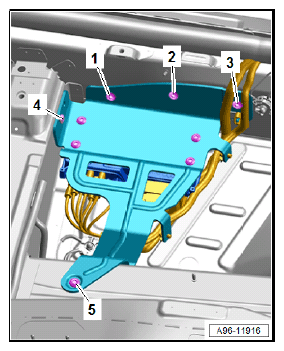

Fig 1: Driver Assistance System Control Module Bolts Tightening Sequence (Large Mount)
Courtesy of AUDI OF AMERICA, LLC
