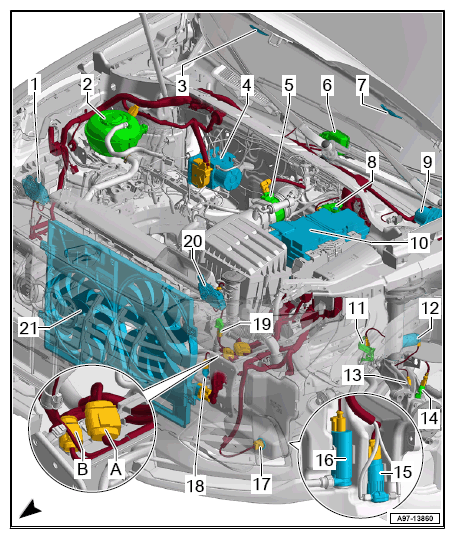

Front, View From Left, Part 1

1. 14-Pin Connector -T14g-, gray/14-Pin Connector -T14gx-, gray
2. 10-Pin Connector -T10k-, black/10-Pin Connector -T10kx-, black
   • For Vehicles With 2.0L Gasoline Engine

1. Engine hood contact switch -F266-
2. Engine Coolant Level (ECL) Sensor -G32-
3. Right Washer Nozzle Heater -Z21-
4. ABS Control Module -J104-
5. Not for USA/CAN
6. Alarm Horn -H12-
7. Left Washer Nozzle Heater -Z20-
8. Battery Monitoring Control Module -J367-
9. Wiper Motor Control Module -J400-
10. Battery -A-
11. Left Front Level Control System Sensor -G78-
12. Left Front Dampening Adjustment Valve -N336-
13. Left Front Brake Pad Wear Sensor -G34-
    • Where Applicable
14. Left Front Wheel Speed Sensor -G47-
15. Windshield and Rear Window Washer Pump -V59-
16. Headlamp Washer Pump -V11-
17. Windshield Washer Fluid Level Sensor -G33-
18. Not for USA/CAN
19. Driver Front Airbag Crash Sensor -G283-
20. Hood contact switch 2 -F329-
21. Coolant Fan -VX57-

Courtesy of AUDI OF AMERICA, LLC
