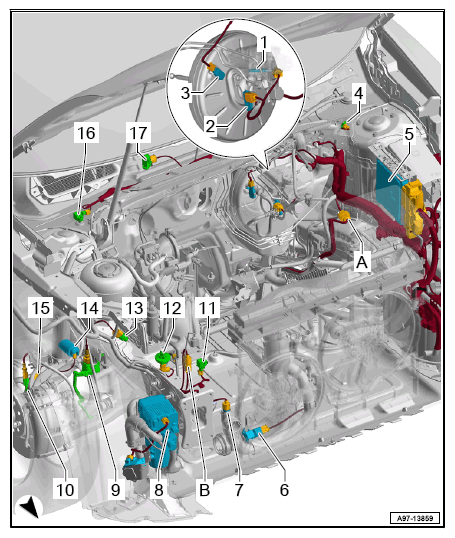

Front, View From Right

6-Pin Connector -T6ad-, black/6-Pin Connector -T6adx-, black
- For Vehicles With gasoline engine
Not Used

Brake Fluid Level Warning Switch -F34-
Brake Light Switch -F-
Vacuum Sensor -G608-
Left Front Body Acceleration Sensor -G341-
Engine Control Module (ECM) -J623-
Charge Air Pressure Sensor -G31-
Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- For Vehicles With 2.0L Gasoline Engine
Auxiliary Heater Control Module -J364-
Right Front Level Control Sensor -G289-
Right Front Wheel Speed Sensor -G45-
Passenger Side Front Airbag Crash Sensor -G284-
Water Level Sensor -G120-
Refrigerant circuit pressure sensor -G805-
Right Front Dampening Adjustment Valve -N337-
Right Front Brake Pad Wear Sensor -G35-
Right Front Body Acceleration Sensor -G342-
Air Quality Sensor -G238-

Courtesy of AUDI OF AMERICA, LLC
