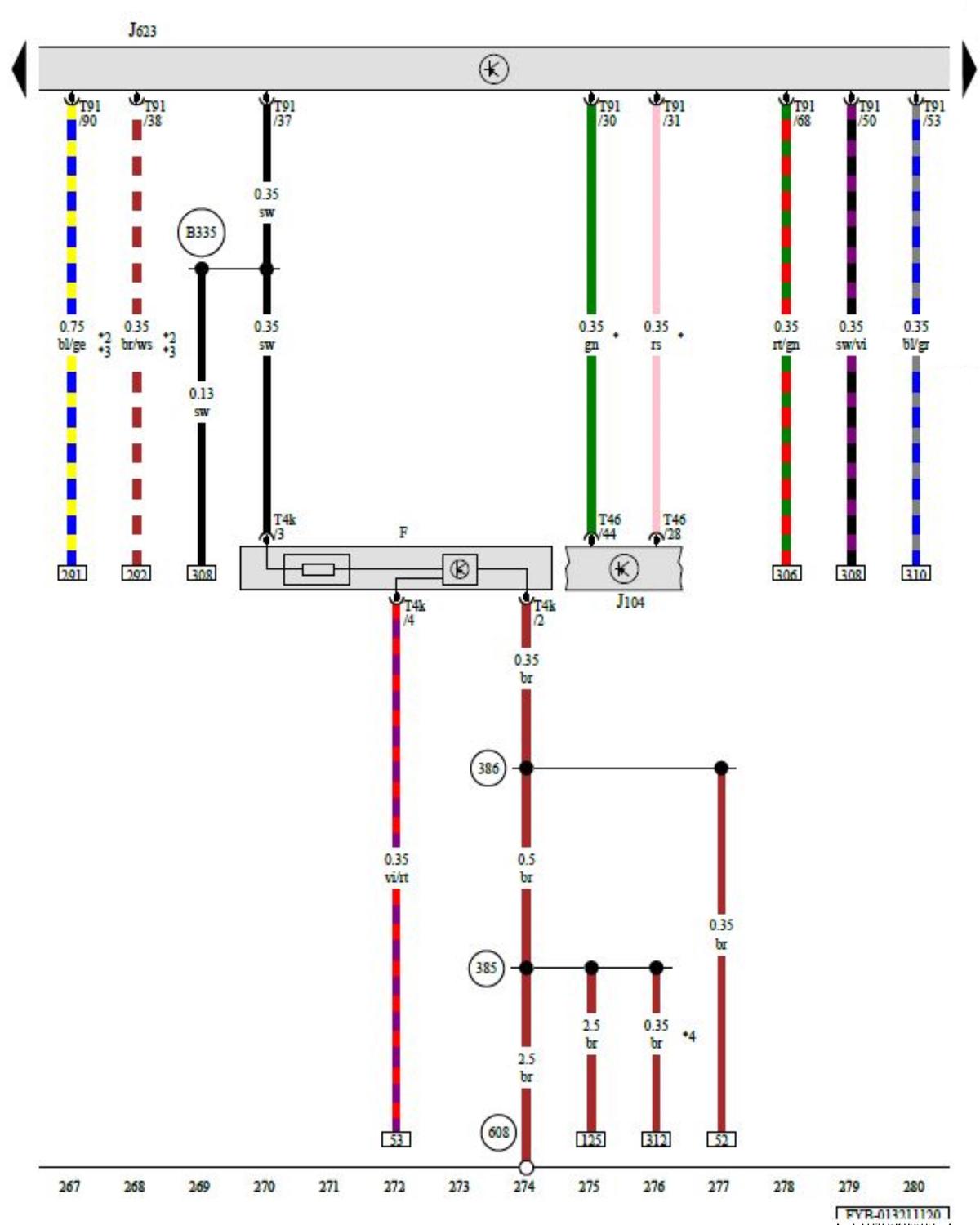

Brake Lamp Switch, Engine/Motor Control Module: Notes

GWWFYB-013200519Courtesy of AUDI OF AMERICA, LLC
