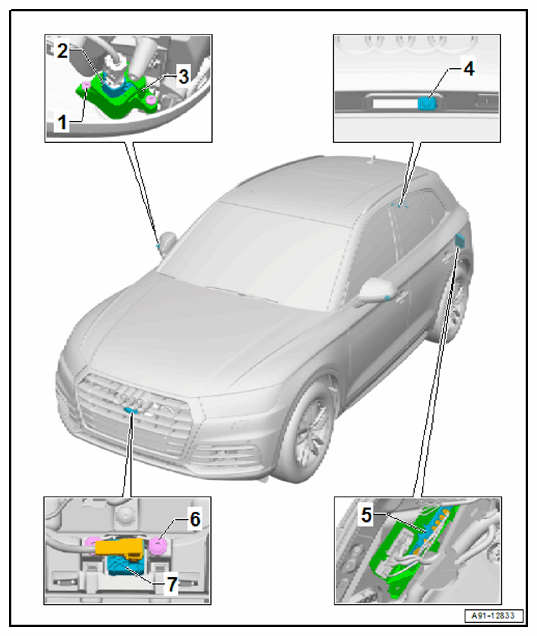

Component Location Overview - Peripheral Camera
- Bolt
- 2 Nm
- Quantity: 2
- Right Peripheral Camera -R245-/Left Peripheral Camera - R244-
- Removing and installing. Refer to Right and Left Peripheral Cameras -R244-/-R245-. Removing and Installing .
- Calibrating. Refer to Peripheral Camera, Calibrating .
- Bracket
- Rear Peripheral Camera -R246-
- Removing and installing. Refer to Rear Peripheral Camera - R246-, Removing and Installing 92.
- Calibrating. Refer to Peripheral Camera, Calibrating .
- Peripheral Camera Control Module - J928-
- In the luggage compartment on the left rear side
- Connector Assignment. Refer to Wiring diagrams, Troubleshooting &; Component locations.
- Removing and installing. Refer to Peripheral Camera Control Module -J928-, Removing and Installing . -->
- Calibrating. Refer to Peripheral Camera, Calibrating .
- Bolt
- 3 Nm
- Quantity: 2
- Front Peripheral Camera - R243-
- Removing and installing. Refer to Front Peripheral Camera - R243-, Removing and Installing .
- Calibrating. Refer to Peripheral Camera, Calibrating .
