Home › Audi › 2019 › Q7 Prestige › Repair and Diagnosis › Engine Performance › Ignition System › Wiring Diagram [CREC] › Wiring Diagram › Engine/Motor Control Module › Notes

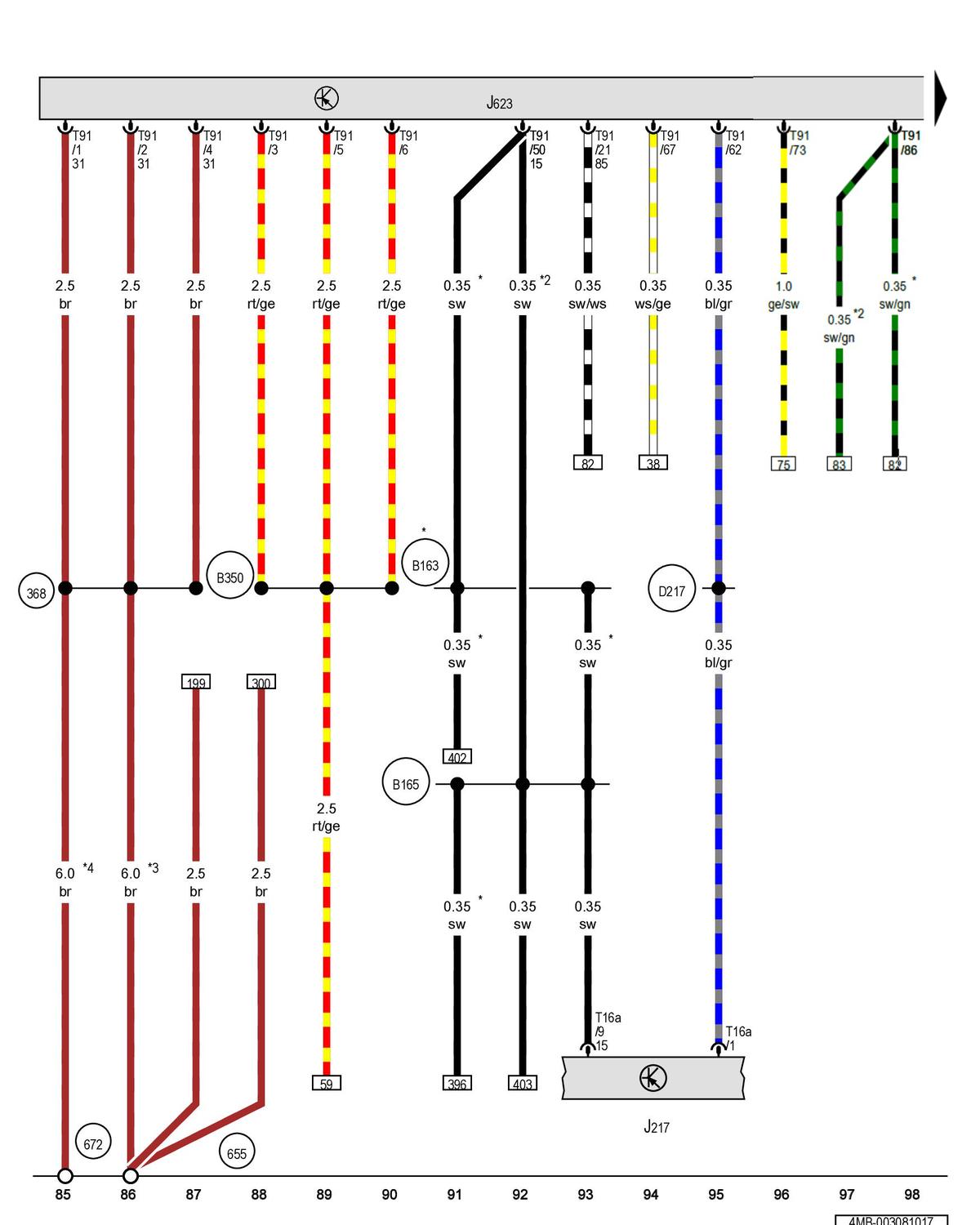

Engine/Motor Control Module: Notes

GWW4MB-003081017Courtesy of AUDI OF AMERICA, LLC
