Wiring Diagram
›

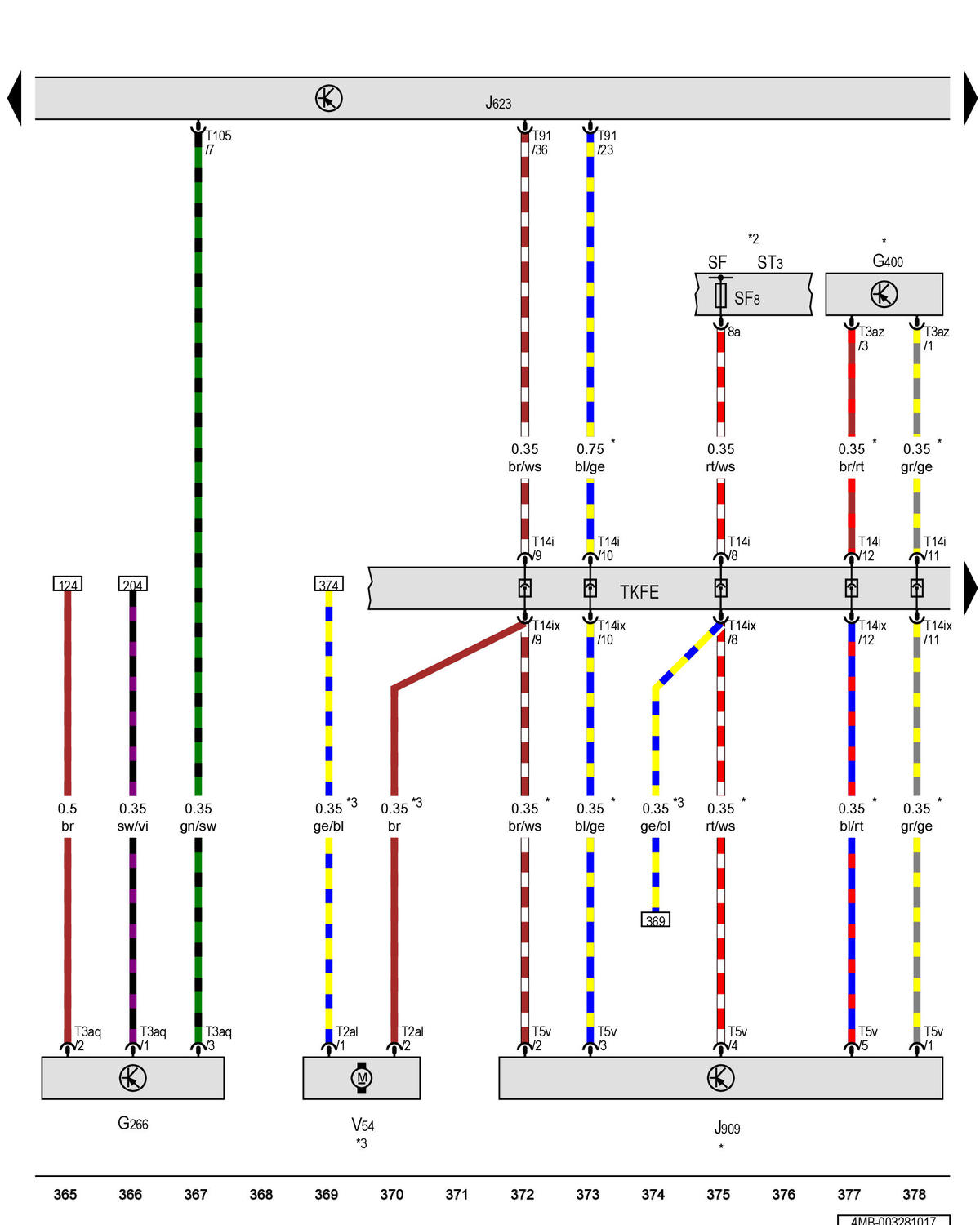

Oil Level Thermal Sensor, Fuel Tank Pressure Sensor, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Metering Pump
›
Notes
Oil Level Thermal Sensor, Fuel Tank Pressure Sensor, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Metering Pump: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
