Home › Audi › 2019 › Q7 Prestige › Repair and Diagnosis › Engine Performance › Ignition System › Wiring Diagram [CREC] › Wiring Diagram › Transfer Fuel Pump, Fuel Level Sensor 2, Comfort System Central Control Module, Fuel Pump Control Module, Engine/Motor Control Module › Notes

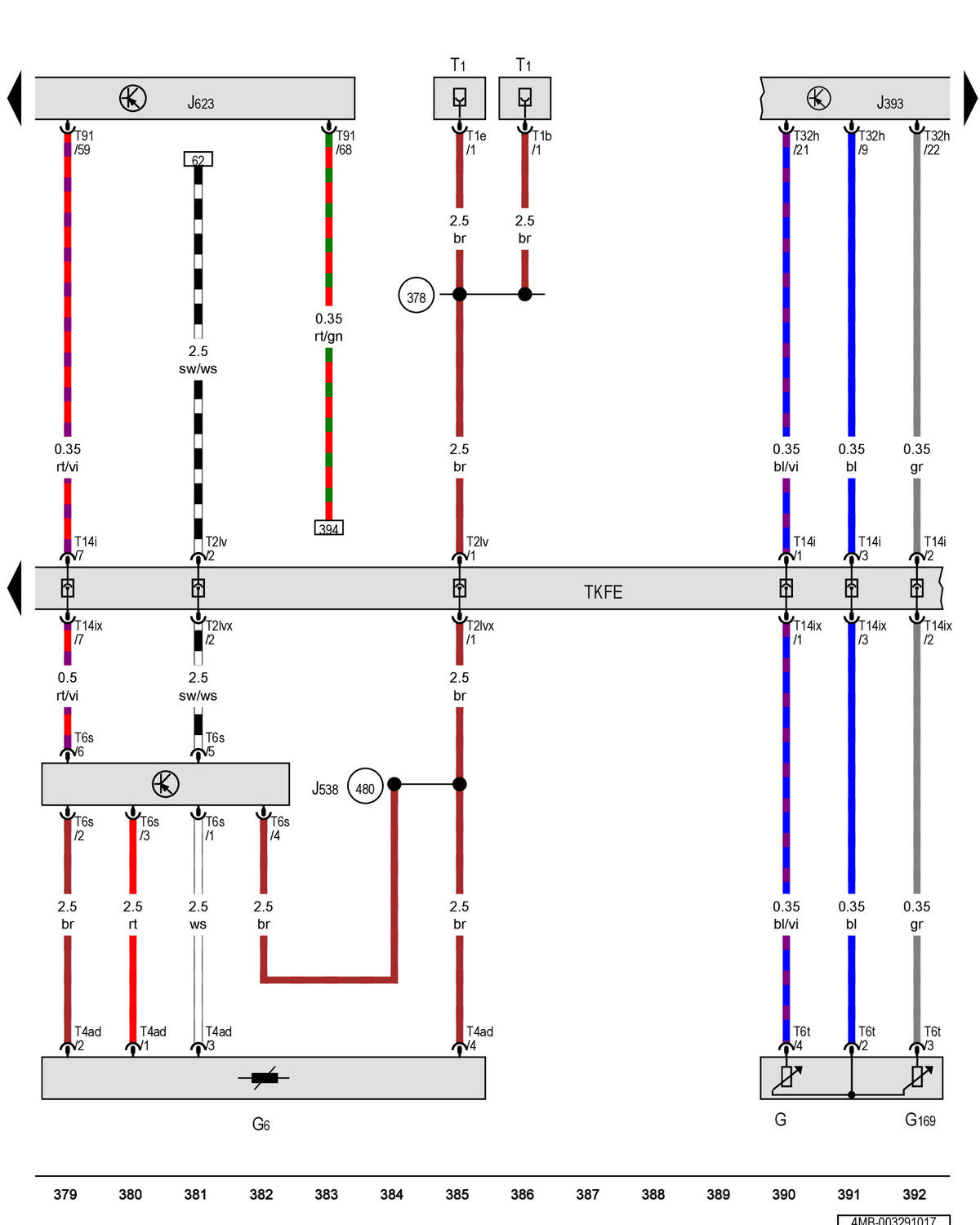

Transfer Fuel Pump, Fuel Level Sensor 2, Comfort System Central Control Module, Fuel Pump Control Module, Engine/Motor Control Module: Notes

GWW4MB-003291017Courtesy of AUDI OF AMERICA, LLC
