Wiring Diagram
›
Wiring Diagram
›

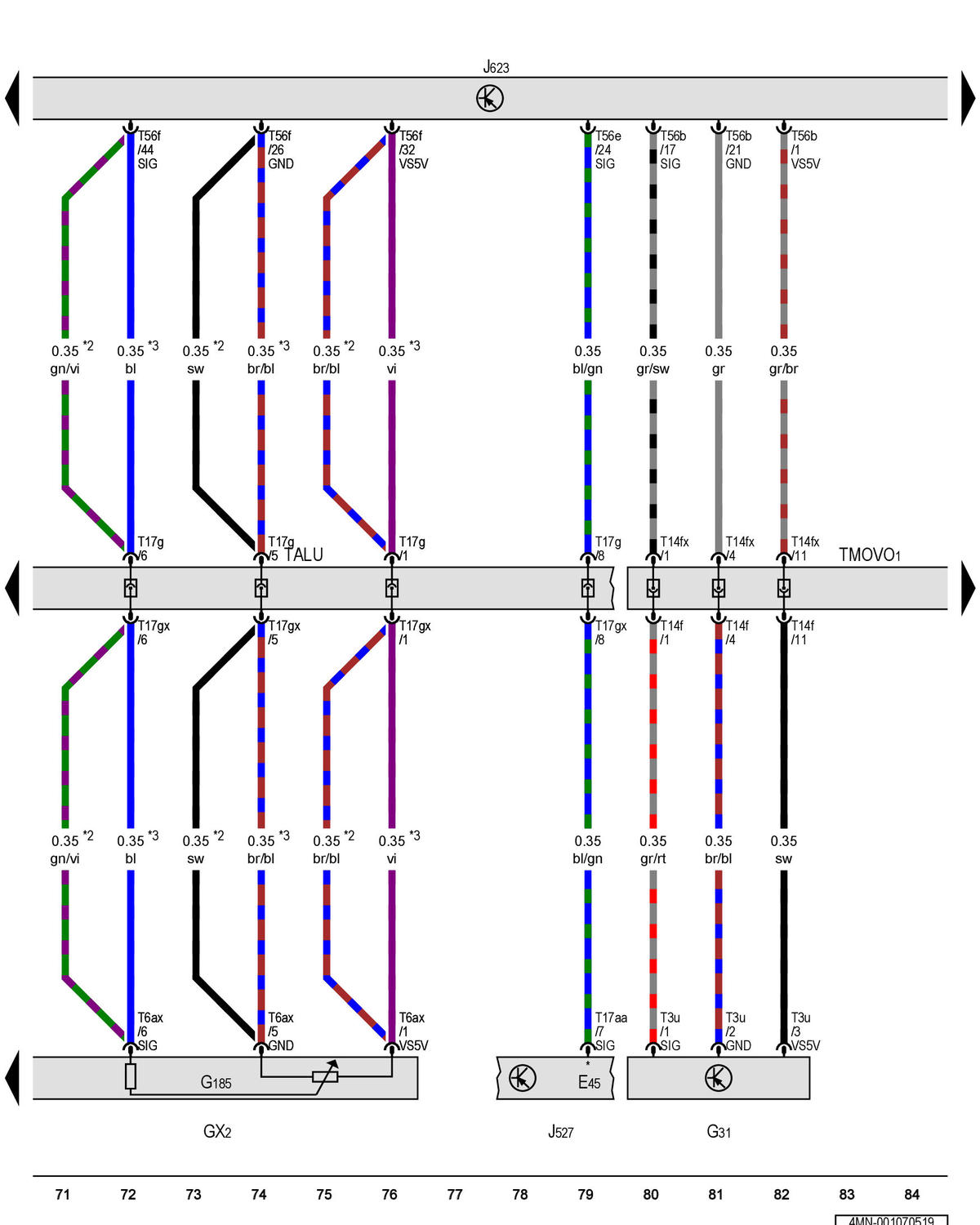

Accelerator Pedal Module, Charge Air Pressure Sensor, Steering Column Electronics Control Module, Engine/Motor Control Module
›
Notes
Accelerator Pedal Module, Charge Air Pressure Sensor, Steering Column Electronics Control Module, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
