Home › Audi › 2020 › A8 e Quattro › Repair and Diagnosis (Single Page) › Quick Lookups › Wiring Diagrams › OEM Wiring Diagram [CZSE] › Wiring Diagram › Accelerator Pedal Module, Steering Column Electronics Control Module, Engine/Motor Control Module › Notes

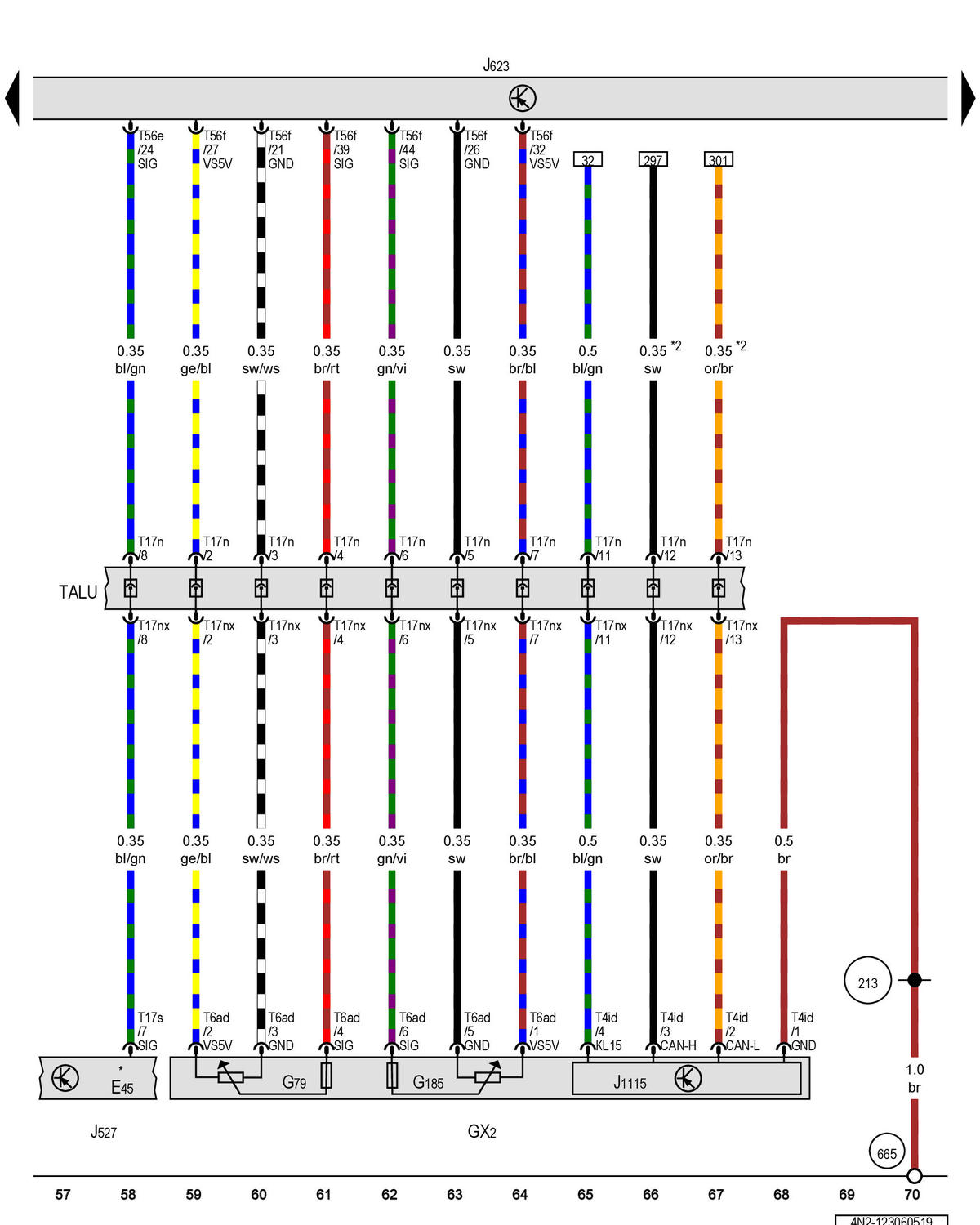

Accelerator Pedal Module, Steering Column Electronics Control Module, Engine/Motor Control Module: Notes

GWW4N2-123060519

Courtesy of AUDI OF AMERICA, LLC
