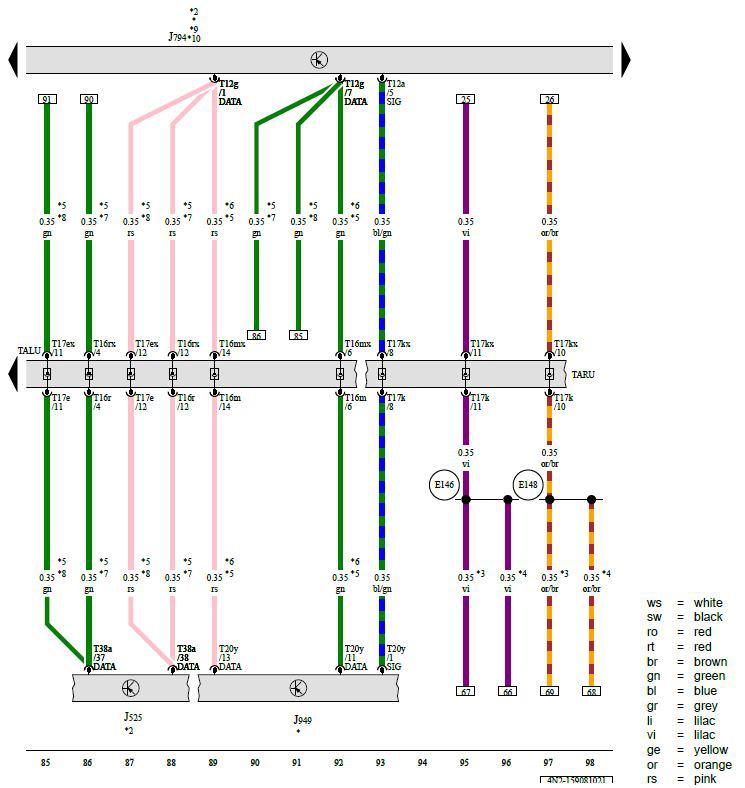

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J525 -  Digital Sound System Control Module

J794 -  Information Electronics Control Module 1

J949 -  Control Module for Emergency Call Module and Communication Unit

T12a -  12-Pin Connector, Blue

T12g -  12-Pin Connector, Green

T16m -  16-Pin Connector, Black

T16mx -  16-Pin Connector, Black

T16r -  16-Pin Connector, Black

T16rx -  16-Pin Connector, Black

T17e -  17-Pin Connector, Red

T17ex -  17-Pin Connector, Red

T17k -  17-Pin Connector, Gray

T17kx -  17-Pin Connector, Gray

T20y -  20-Pin Connector, Naturally Cloudy

T38a -  38-Pin Connector, Black

TALU -  Coupling Point on Left A-Pillar, Bottom

TARU -  Coupling Point on Right A-Pillar, Bottom

E146 -  Connection 2 (CAN Bus Information Electronics Control Module 1, High)

E148 -  Connection 2 (CAN Bus Information Electronics Control Module 1, Low)

* -  Refer to Applicable Communication Wiring Diagram

*2 -  Refer to Applicable Sound System Wiring Diagram

*3 -  For Vehicles with Short Rear Center Console

*4 -  For Vehicles with Long Rear Center Console

*5 -  Audio Bus Data Bus Wire

*6 -  For Vehicles with Standard Sound System

*7 -  For RHD Vehicles

*8 -  For LHD Vehicles

*9 -  Refer to Applicable Peripheral Camera Wiring Diagram

*10 -  Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
