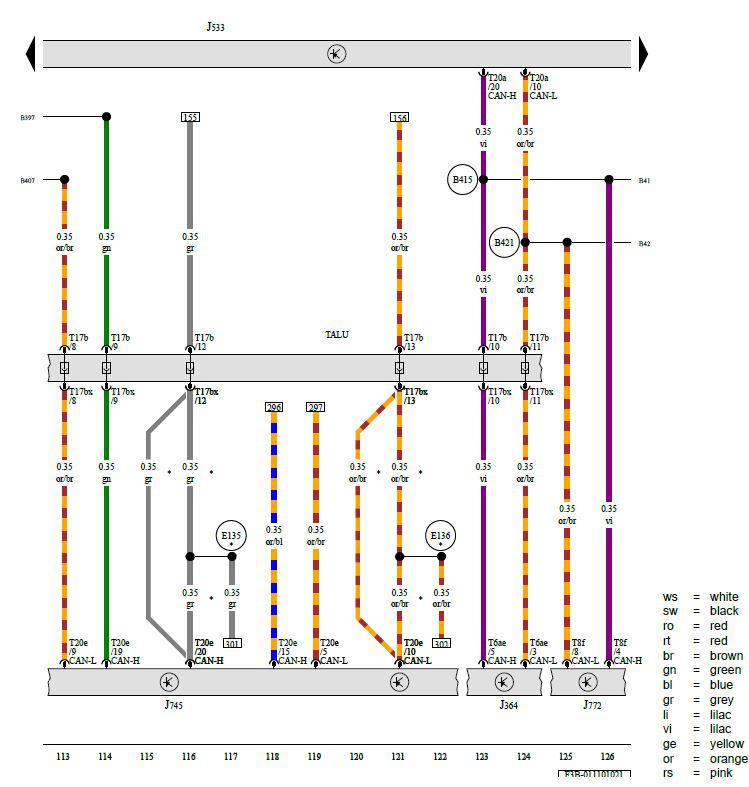

Auxiliary Heater Control Module, Data Bus on Board Diagnostic Interface, Cornering Lamp and Headlamp Range Control Module, Rearview Camera System Control Module
J364 - Auxiliary Heater Control Module
J533 - Data Bus on Board Diagnostic Interface
J745 - Cornering Lamp and Headlamp Range Control Module
J772 - Rearview Camera System Control Module
T6ae - 6-Pin Connector, Black
T8f - 8-Pin Connector, Black
T17b - 17-Pin Connector, Black
T17bx - 17-Pin Connector, Black
T20a - 20-Pin Connector, Black
T20e - 20-Pin Connector, Brown
TALU - Coupling Point on Left A-Pillar, Bottom
B397 - Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B415 - Infotainment CAN Bus High Connection 1 (in Main Wiring Harness)
B421 - Infotainment CAN Bus Low Connection 1 (in Main Wiring Harness)
E135 - CAN Bus Extended High Connection (in Engine/Motor Compartment Wiring Harness)
E136 - CAN Bus Extended Low Connection (in Engine/Motor Compartment Wiring Harness)
* - Depending on Equipment
