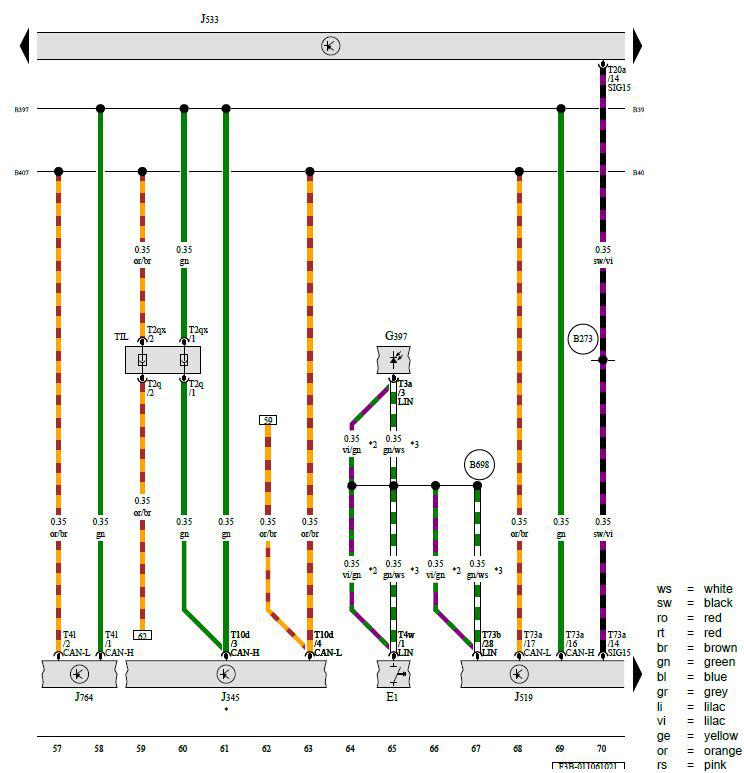

Light Switch, Rain/Light Recognition Sensor, Towing Recognition Control Module, Vehicle Electrical System Control Module, Data Bus on Board Diagnostic Interface, Electronic Steering Column Lock Control Module
E1 - Light Switch
G397 - Rain/Light Recognition Sensor
J345 - Towing Recognition Control Module
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface
J764 - Electronic Steering Column Lock Control Module
T2q - 2-Pin Connector, Black
T2qx - 2-Pin Connector, Black
T3a - 3-Pin Connector, Black
T4l - 4-Pin Connector, Black
T4w - 4-Pin Connector, Red
T10d - 10-Pin Connector, Black
T20a - 20-Pin Connector, Black
T73a - 73-Pin Connector, Black
T73b - 73-Pin Connector, Black
TIL - Coupling Point in Interior, Left, On the Lower Left A-Pillar
B273 - Positive Connection (15) (in Main Wiring Harness)
B397 - Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B698 - LIN Bus Connection 3 (in Main Wiring Harness)
* - For Vehicles with Trailer Socket
*2 - Through October 2018
*3 - From October 2018
