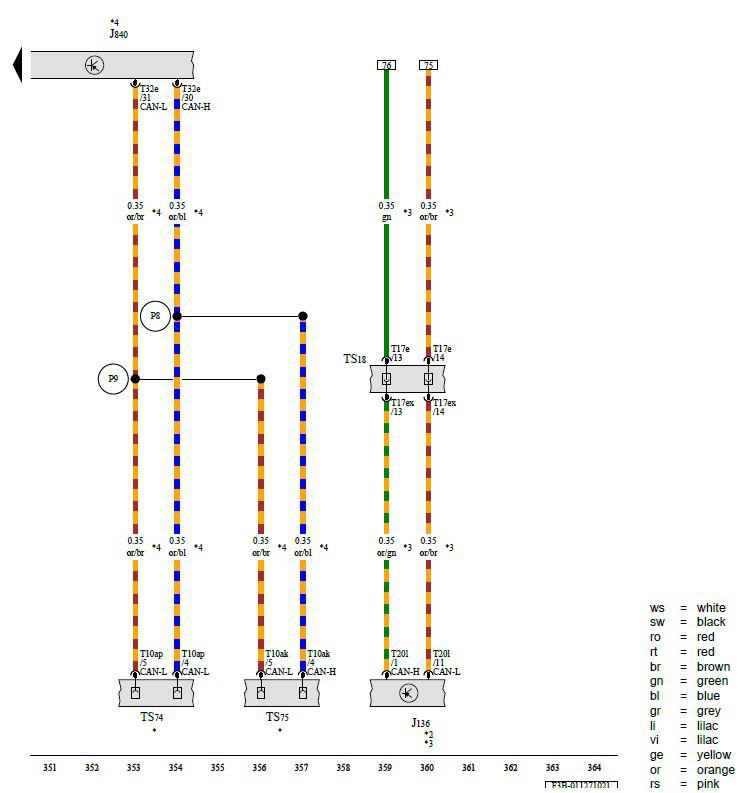

Memory Seat/Steering Column Adjustment Control Module, Battery Regulation Control Module

Courtesy of AUDI OF AMERICA, LLC

J136 -  Memory Seat/Steering Column Adjustment Control Module

J840 -  Battery Regulation Control Module

T10ak -  10-Pin Connector, Black

T10ap -  10-Pin Connector, Red

T17e -  17-Pin Connector, Red

T17ex -  17-Pin Connector, Red

T20l -  20-Pin Connector, Black

T32e -  32-Pin Connector, Black

TS18 -  Driver Seat Coupling Point

TS74 -  Battery Module Coupling Point 1

TS75 -  Battery Module Coupling Point 2

P8 -  Connection 2 (in High-Voltage Battery Wiring Harness)

P9 -  Connection 3 (in High-Voltage Battery Wiring Harness)

* -  Refer to Applicable High-Voltage Battery Wiring Diagram

*2 -  Refer to Applicable Seat Adjustment Wiring Diagram

*3 -  For Vehicles with Power Memory Seats

*4 -  For Vehicles with Hybrid Drive
