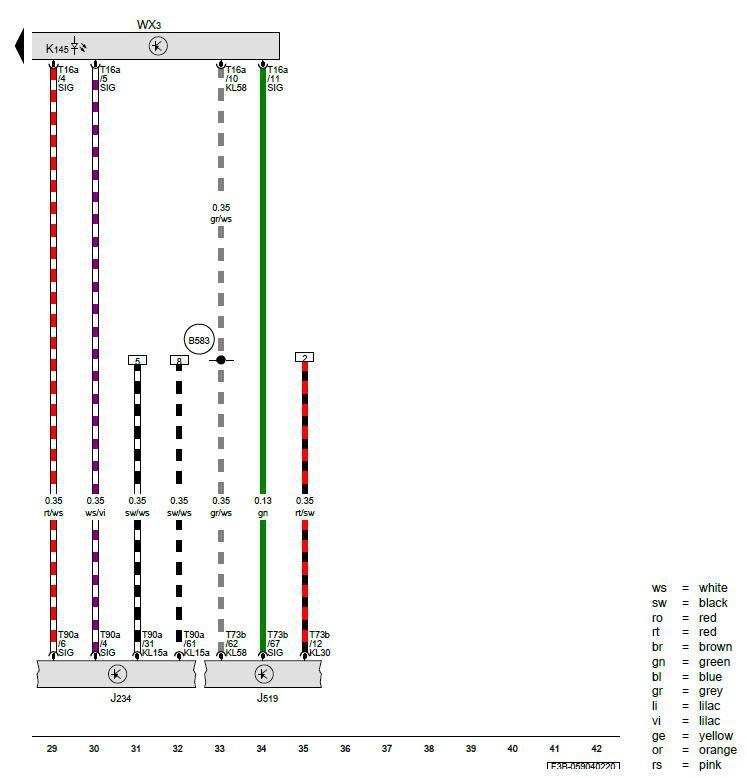

Airbag Control Module, Vehicle Electrical System Control Module, Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J234 -  Airbag Control Module

J519 -  Vehicle Electrical System Control Module

K145 -  Front Passenger Airbag -Disabled- Indicator Lamp

T16a -  16-Pin Connector, Brown

T73b -  73-Pin Connector, Black

T90a -  90-Pin Connector, Yellow

WX3 -  Front Roof Module

B583 -  Positive Connection (58) (in Interior Wiring Harness)
