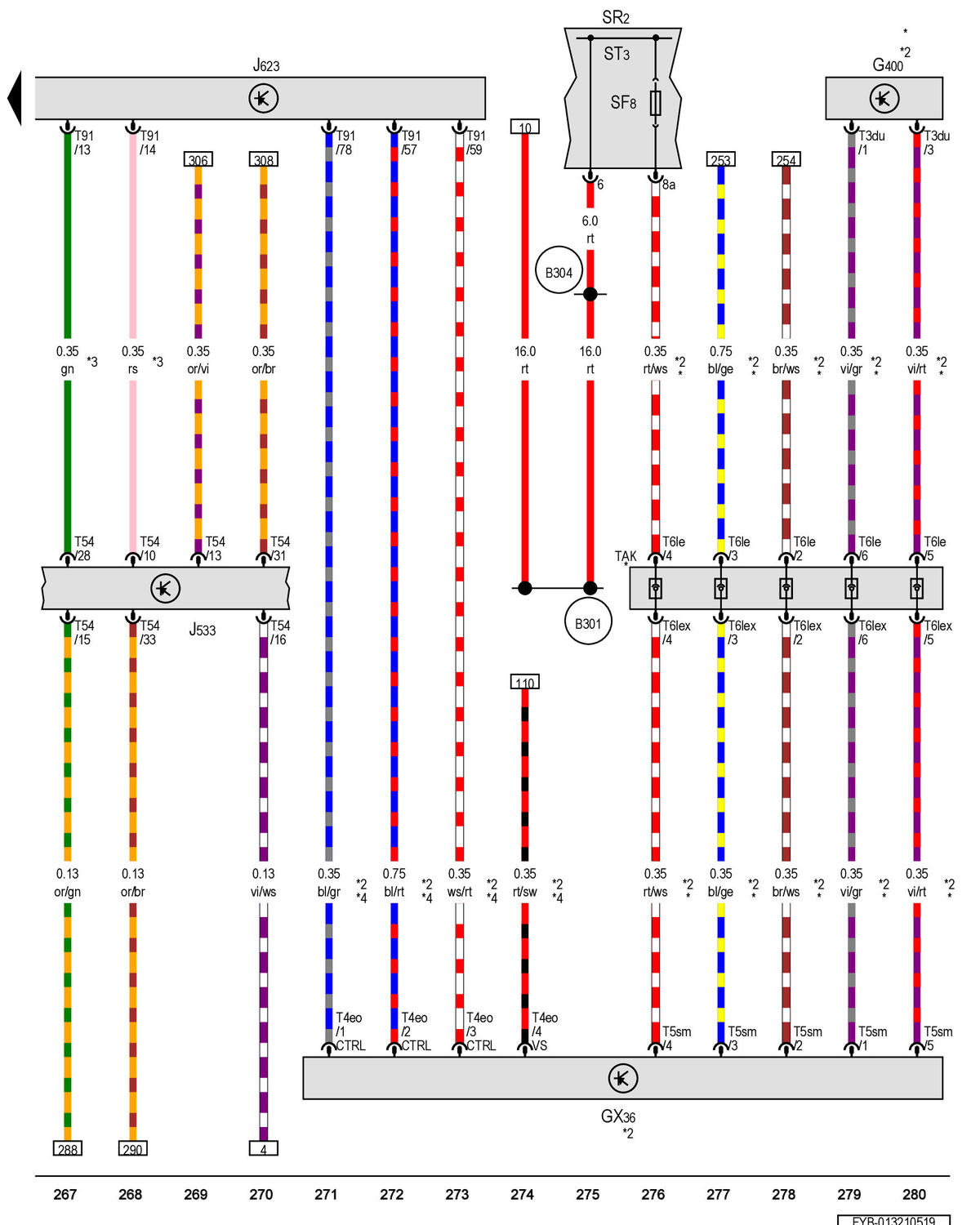

Fuel Tank Leak Detection Module, Fuel Tank Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Relay And Fuse Panel 2: Notes

GWWFYB-013210519

Courtesy of AUDI OF AMERICA, LLC
