Repair and Diagnosis (Single Page)
›
Electrical
›
Wiring Diagrams
›
Wiring Diagram
›
Wiring Diagram
›

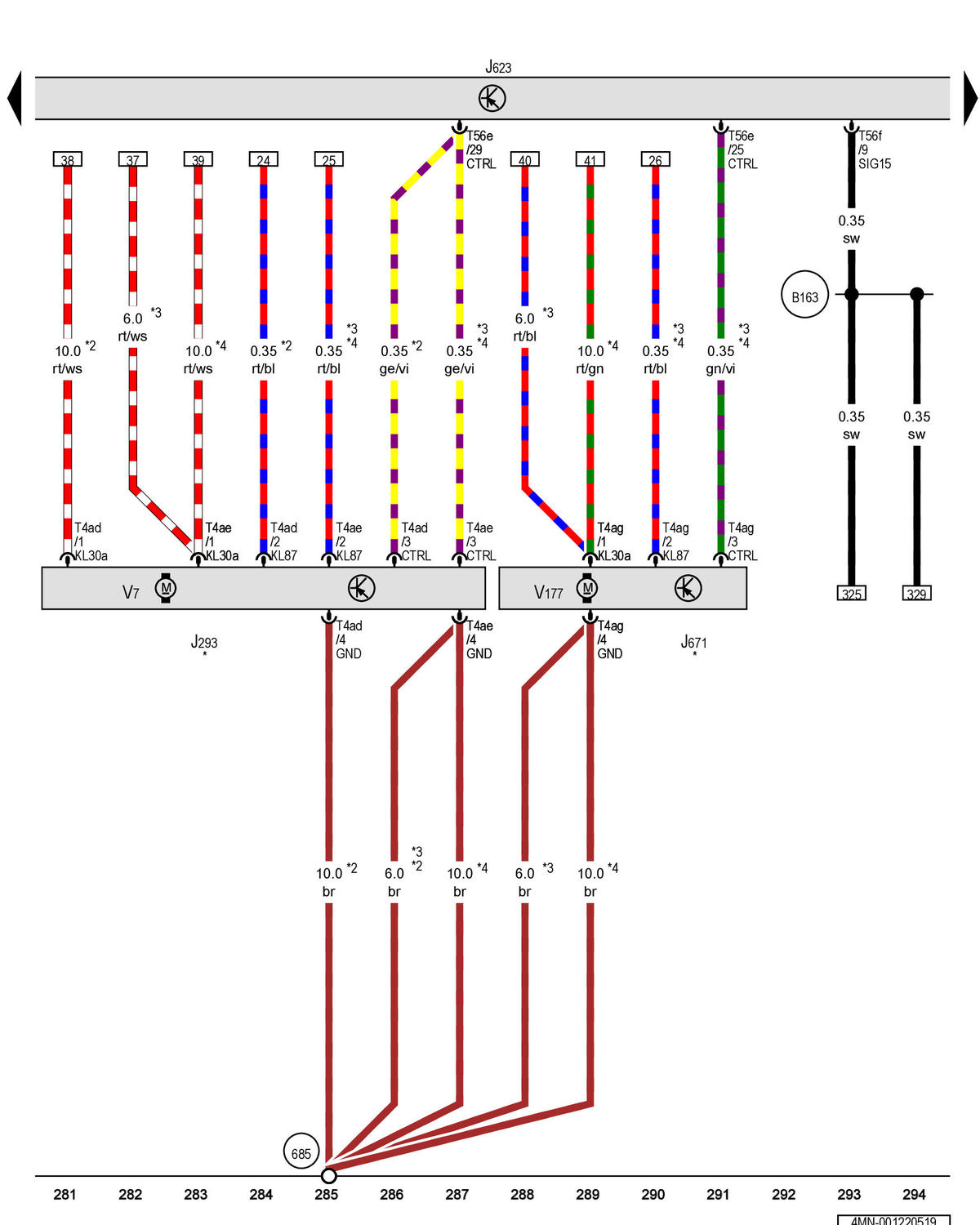

Radiator Fan Control Module, Engine/Motor Control Module, Radiator Fan Control Module 2
›
Notes
Radiator Fan Control Module, Engine/Motor Control Module, Radiator Fan Control Module 2: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
