Wiring Diagram
›
Wiring Diagram
›

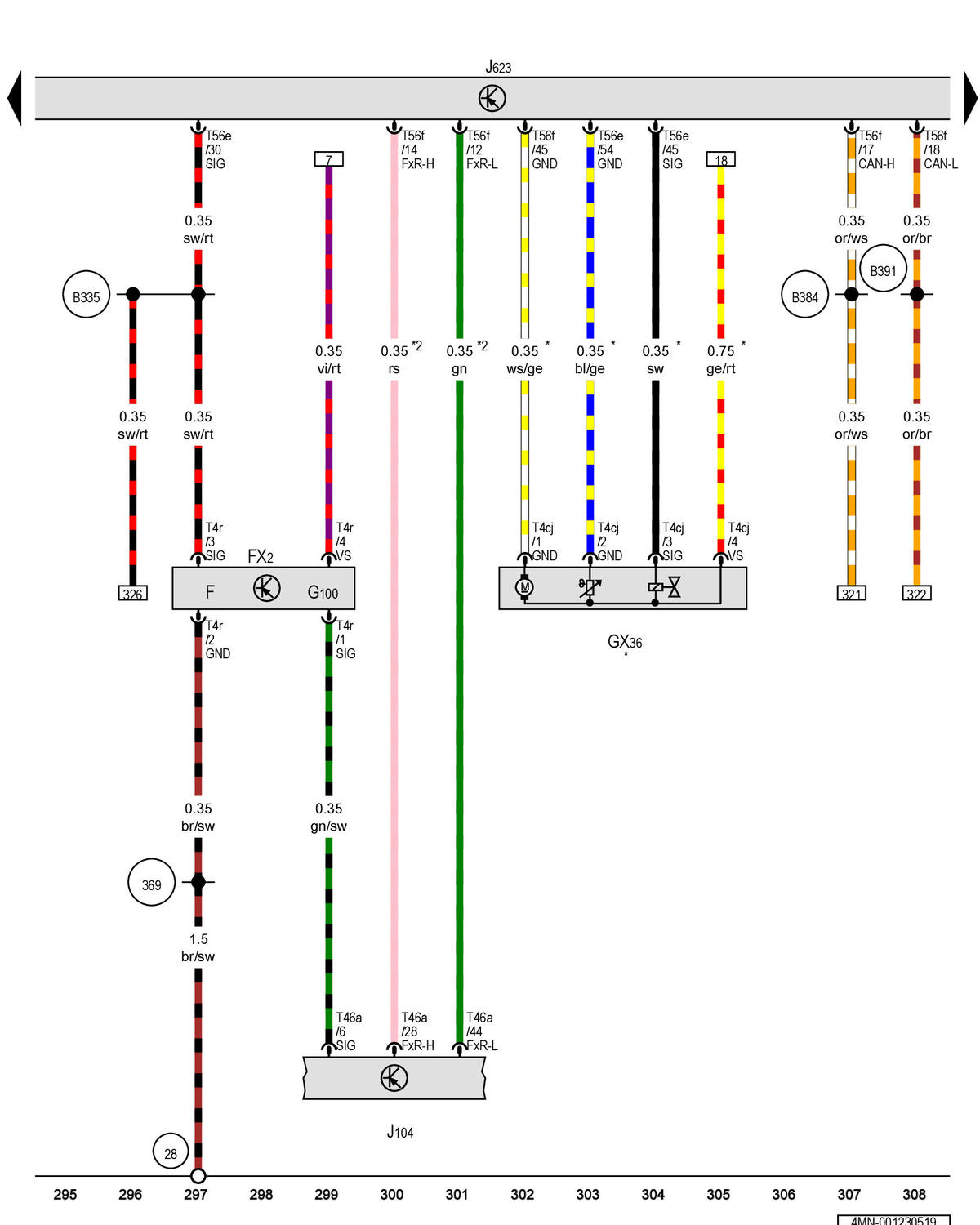

Brake Pedal Switch, Fuel Tank Leak Detection Module, Abs Control Module, Engine/Motor Control Module
›
Notes
Brake Pedal Switch, Fuel Tank Leak Detection Module, Abs Control Module, Engine/Motor Control Module: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
