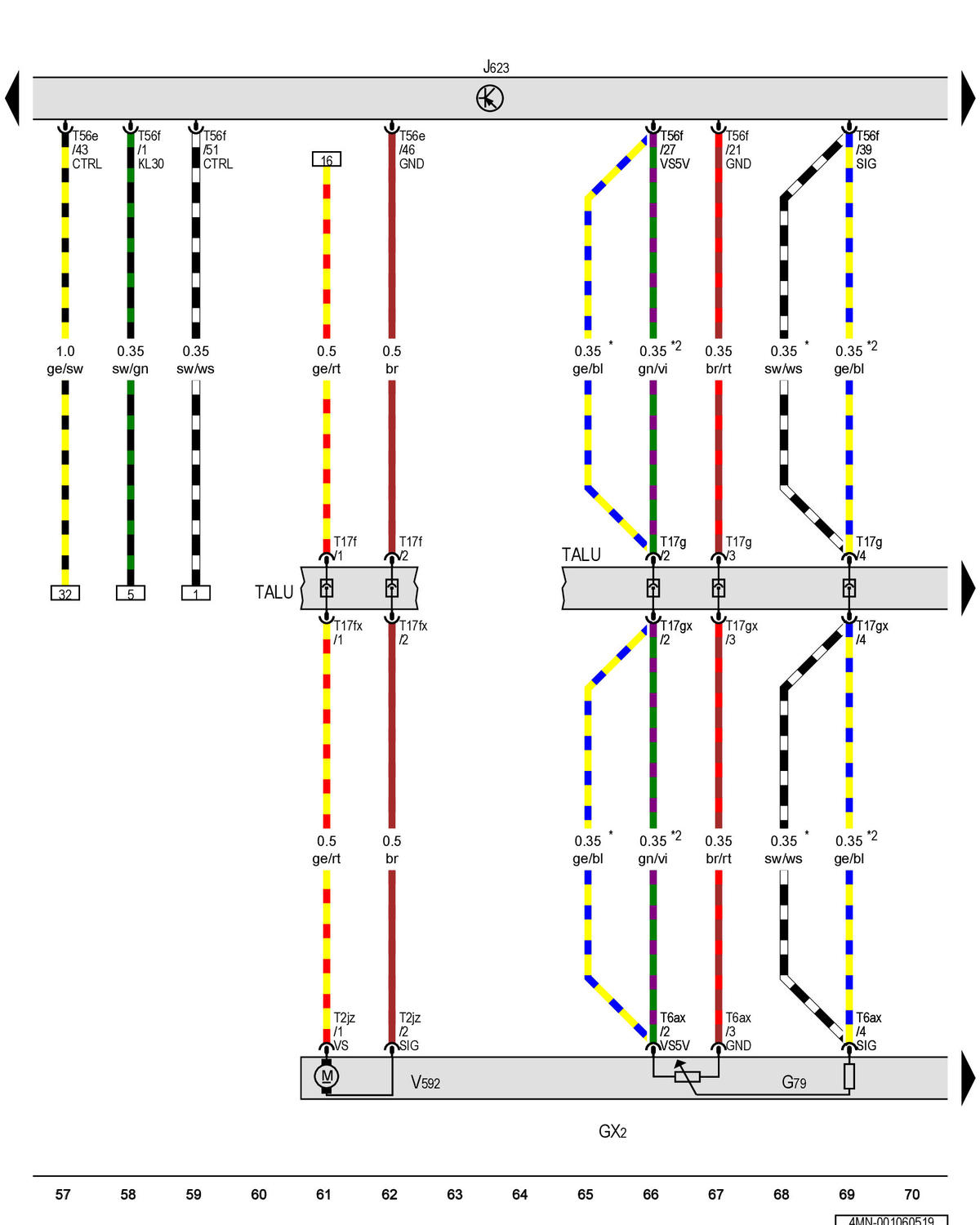

Accelerator Pedal Module, Engine/Motor Control Module: Notes

GWW4MN-001060519

Courtesy of AUDI OF AMERICA, LLC
