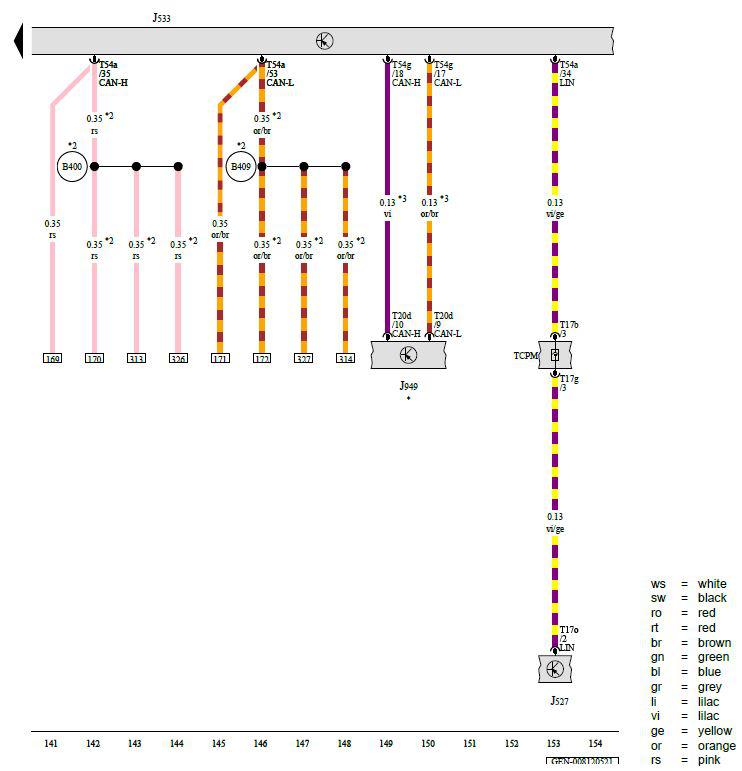

Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Control Module for Emergency Call Module and Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J527 -  Steering Column Electronics Control Module

J533 -  Data Bus on Board Diagnostic Interface

J949 -  Control Module for Emergency Call Module and Communication Unit

T17b -  17-Pin Connector, Blue

T17g -  17-Pin Connector, Blue

T17o -  17-Pin Connector, Yellow

T20d -  20-Pin Connector, Black

T54a -  54-Pin Connector, Black

T54g -  54-Pin Connector, Gray

TCPM -  Coupling Point on Instrument Panel, Center

B400 -  Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)

B409 -  Comfort System CAN Bus Low Connection 4 (in Main Wiring Harness)

* -  Refer to Applicable Wiring Diagram

*2 -  Optional Equipment

*3 -  For Vehicles with Emergency Call Module
