OVERVIEW - Transmission Control Module -J217-

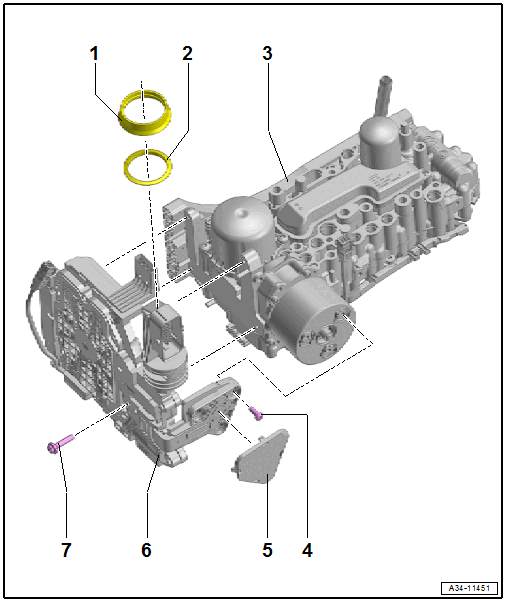

Fig 1: Exploded View Of Transmission Control Module -J217- (0CK, 0CJA, 0CLA, 0DN & 0DPA)

Courtesy of AUDI OF AMERICA, LLC

1. Protective Cap
   • Replace after removing
2. Seal
   • Replace after removing

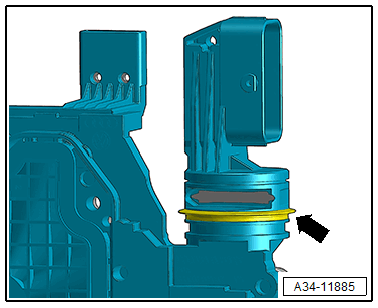

   • Refer to Figure
3. Valve Body
   • Overview. Refer to OVERVIEW - VALVE BODY .
4. Bolt
   • 5 Nm + 20°
   • Replace after removing
   • Quantity: 3
5. Cover
6. Transmission Control Module -J217-
   • Removing and Installing. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
7. Bolt
   • 3 Nm +90°
   • Replace after removing
   • Quantity: 4
