Engine, Securing To Engine And Transmission Holder

WARNING: This page is about a different car, the 2022 Audi S5 Sportback, 2021 Audi S5 Sportback, and 2020 Audi S5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine and Gearbox Bracket VAS6095A: VAS6095A
Engine/Transmission Holder - Universal Mounting: VAS6095/1 and V6 TFSI Engine Bracket: VAS6095/1-15

Procedure

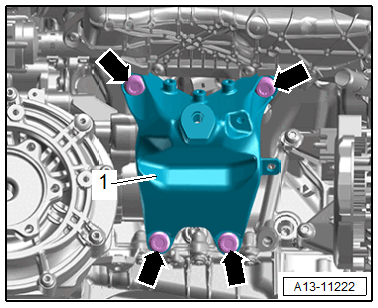

-- Remove the bolts -arrows- and remove the left engine support.

Courtesy of AUDI OF AMERICA, LLC

If the Chain Drive on the Connection Should Be Worked On:

Courtesy of AUDI OF AMERICA, LLC

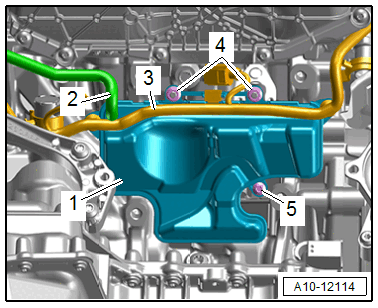

-- Remove the vacuum hose -2- at the same time to not damage it.

-- Free up the wiring harness -3-.

-- Remove the nuts -4- and bolt -5-.

-- Remove the vacuum reservoir -1-.

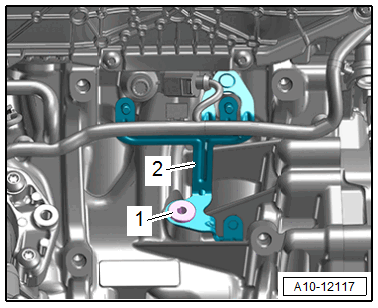

-- Remove the plug -1- for "TDC" hole and remove the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

Continuation:

Courtesy of AUDI OF AMERICA, LLC

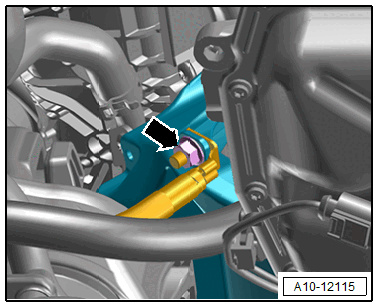

-- Remove the ground cable nut -arrow-.

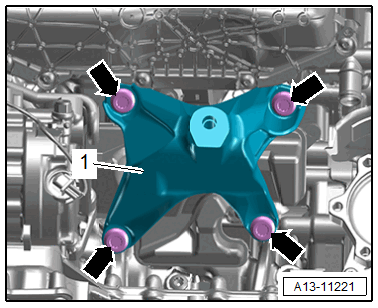

-- Remove the bolts -arrows- and remove the right engine support -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

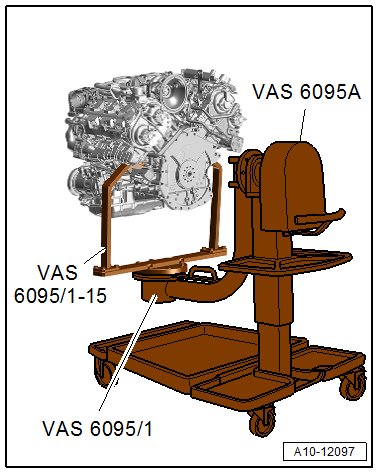

-- Secure the engine to the : VAS6095 using the : VAS6095/1-15 and : VAS6095/1-11 and tighten to 40 Nm.

Courtesy of AUDI OF AMERICA, LLC
