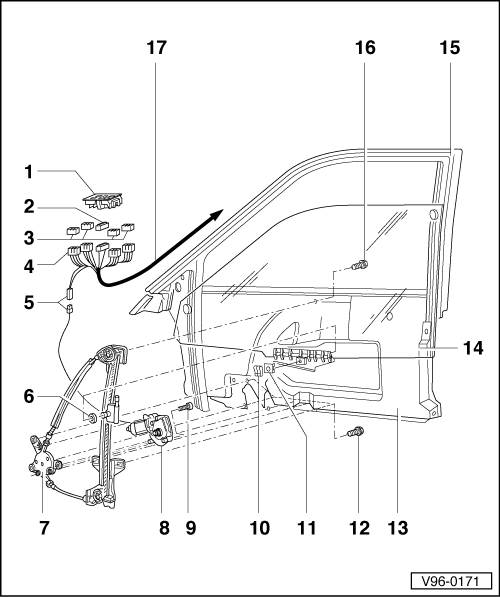

Power Window Regulator Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Console
2. Lockout Switch for Rear Window Regulators
   • Refer to Removal and Installation .
3. Operating Switches for Window Regulators
   • Refer to Removal and Installation .
4. Connectors for Console Switches
   • Refer to Description and Operation .
5. Window Regulator Connector
   • Refer to Description and Operation .
6. Washer
   • Configuration and installation position, refer to WINDOW REGULATOR AND DOOR GLASS .
7. Window Regulator
   • Removing and installing on door component carrier, refer to WINDOW REGULATOR AND DOOR GLASS .
8. Window Regulator Motor
   • Refer to Removal and Installation .
9. Bolt
   • 4.5 Nm (44 in lb)
10. Locking Clip for Door Glass
    • Removing and configuration, refer to WINDOW REGULATOR AND DOOR GLASS .
11. Washer
    • Removing and configuration, refer to WINDOW REGULATOR AND DOOR GLASS .
12. Regulator Mounting Bolt
    • 10 Nm (7 ft lb)
13. Door Component Carrier
    • Different securing points on manual/power window regulators. Refer to Window Regulator Mounting Points .
14. Front Left Door Glass
    • Removing and installing, refer to WINDOW REGULATOR AND DOOR GLASS .
15. Window Channel (Seal)
16. Regulator Mounting Bolt
    • 10 Nm (7 ft lb)
17. Wiring Harness
    • Refer to Description and Operation .
