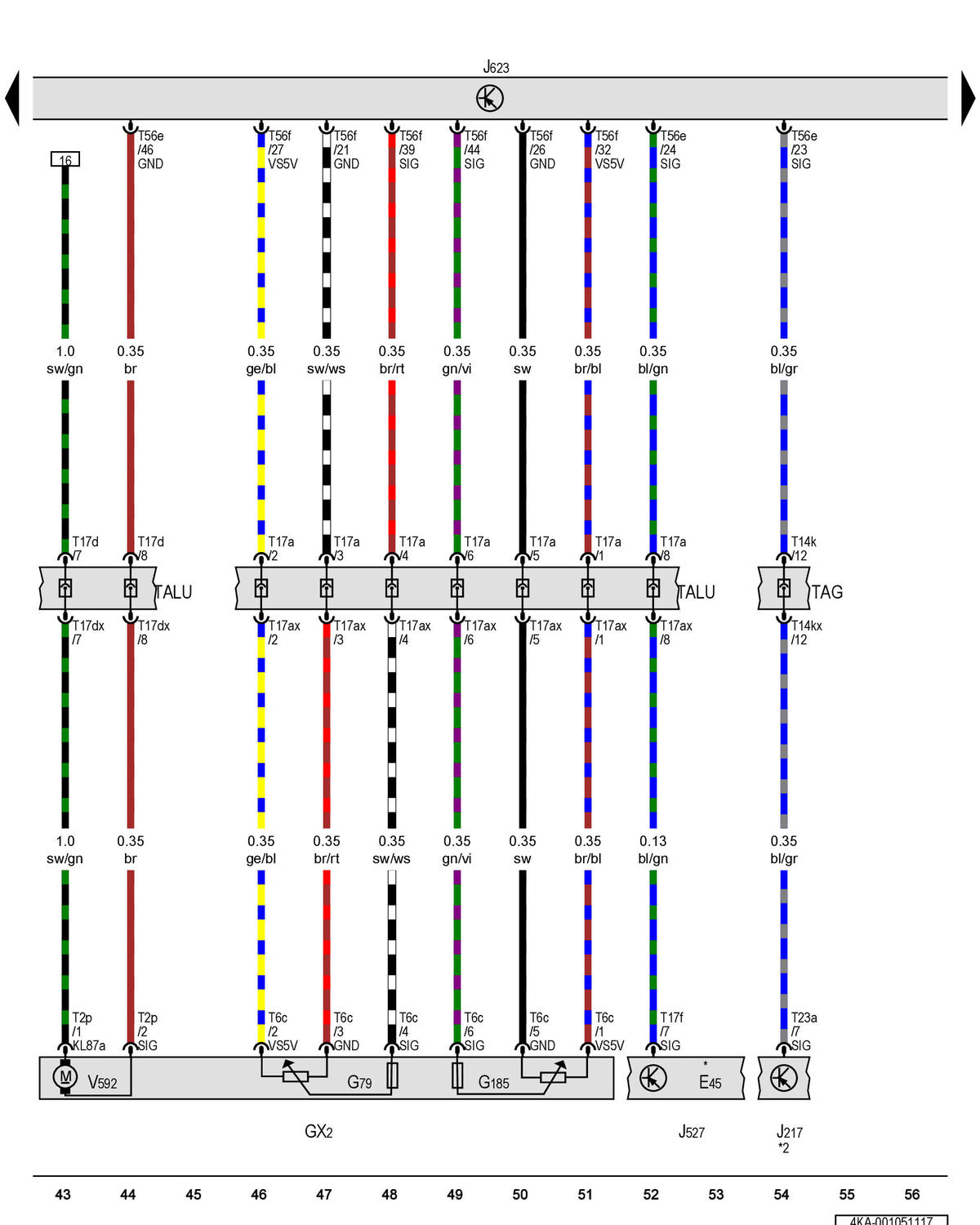

Accelerator Pedal Module, Steering Column Electronics Control Module, Engine/Motor Control Module: Notes

GWW4KA-001051117Courtesy of AUDI OF AMERICA, LLC
