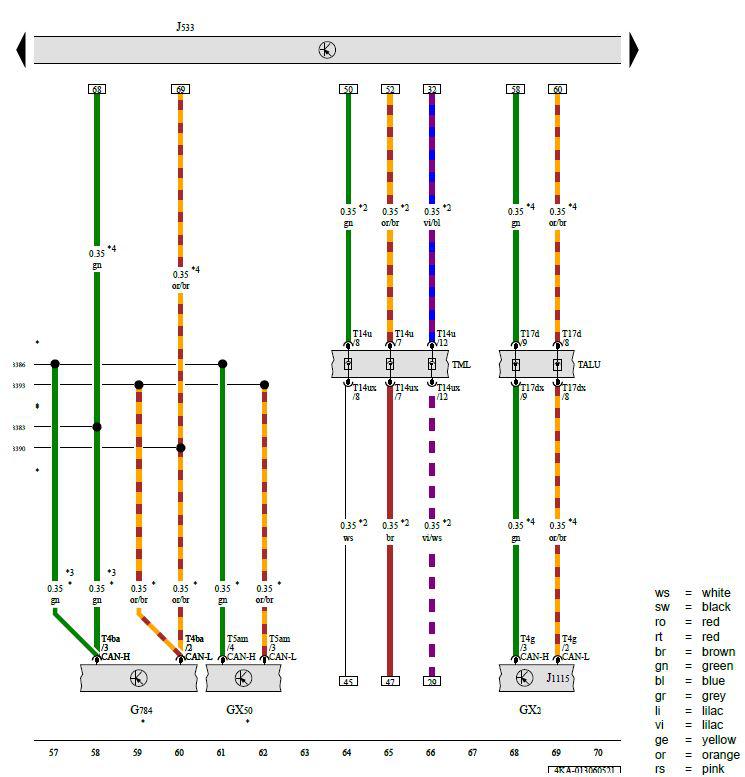

Accelerator Pedal Module, NOx Sensor Control Module 3, Particulate Sensor, Data Bus on Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

GX2 -  Accelerator Pedal Module

GX50 -  NOx Sensor Control Module 3

G784 -  Particulate Sensor

J533 -  Data Bus on Board Diagnostic Interface

J1115 -  Active Accelerator Pedal Control Module

T4ba -  4-Pin Connector, Black

T4g -  4-Pin Connector, Black

T5am -  5-Pin Connector, Black

T14u -  14-Pin Connector, Black

T14ux -  14-Pin Connector, Black

T17d -  17-Pin Connector, Green

T17dx -  17-Pin Connector, Green

TALU -  Coupling Point on Left A-Pillar, Bottom

TML -  Coupling Point in Engine/Motor Compartment, Left

B383 -  Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B386 -  Powertrain CAN Bus High Connection 4 (in Main Wiring Harness)

B390 -  Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

B393 -  Powertrain CAN Bus Low Connection 4 (in Main Wiring Harness)

* -  Refer to Applicable Engine Wiring Diagram

*2 -  Depending on Equipment

*3 -  Different Wire Color Possible

*4 -  For Vehicles with Hybrid Drive
