Wiring Diagram [DLZA]
›
Wiring Diagram
›

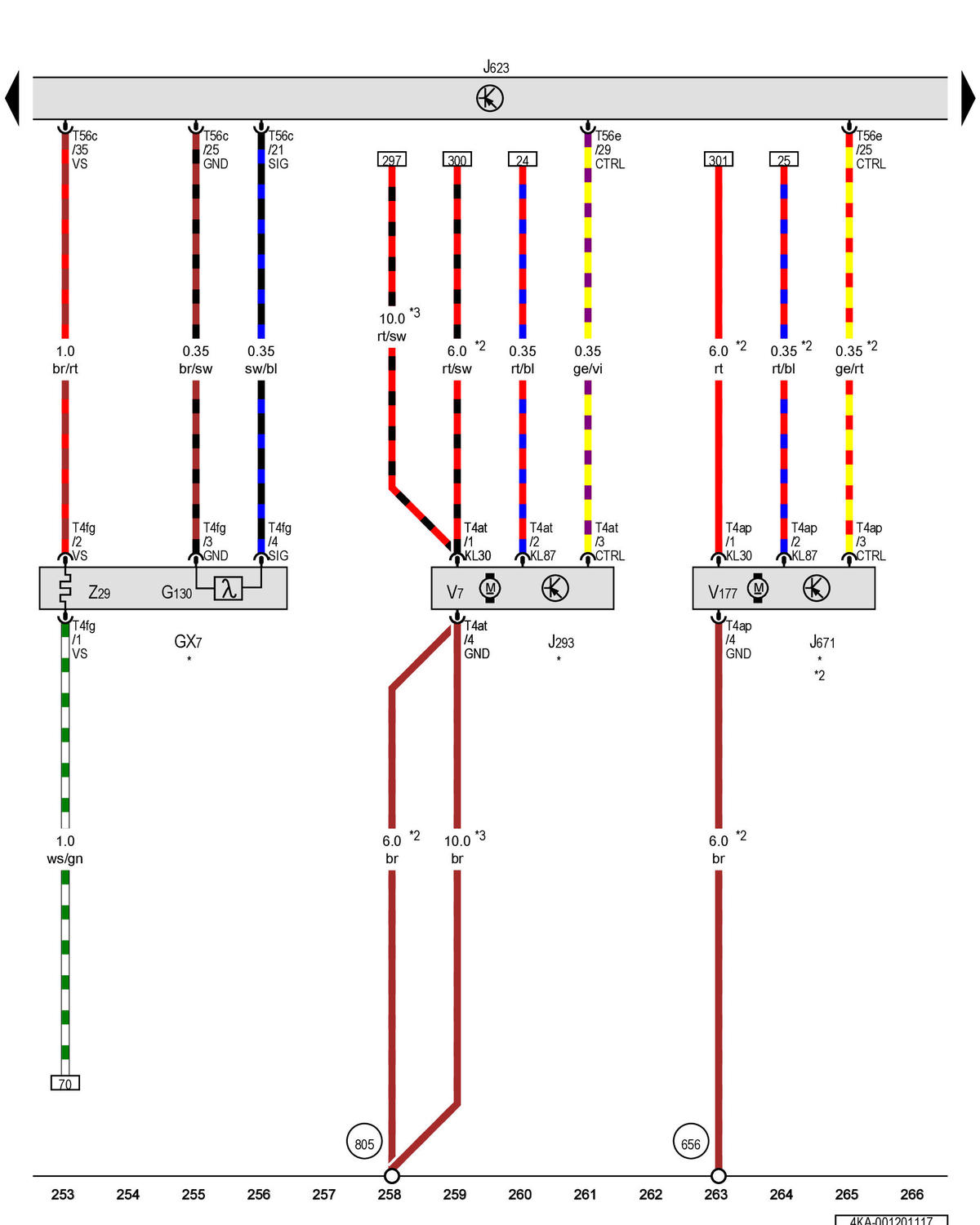

Oxygen Sensor 1 After Catalytic Converter, Radiator Fan Control Module, Engine/Motor Control Module, Radiator Fan Control Module 2
›
Notes
Oxygen Sensor 1 After Catalytic Converter, Radiator Fan Control Module, Engine/Motor Control Module, Radiator Fan Control Module 2: Notes
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
